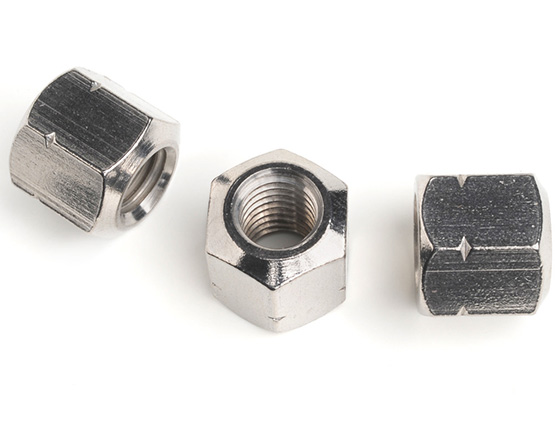

M36 X 54 Hexagon Nut Type B DIN 6330 A4 Stainless Steel
Part No. A633036A4
£10995.29 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 10 + | £10995.29 |
| 20 + | £10445.53 |
| 40 + | £9923.25 |
| 100 + | £9428.46 |
| 200 + | £8845.71 |
Further Information
| Diameter (d) | Pitch | m (js15) | s | e | d1 (h14) |
|---|---|---|---|---|---|
| M6 | 1.00 | 9 | 10 | 11.05 | 7.0 |
| M8 | 1.25 | 12 | 13 | 14.38 | 9.0 |
| M10 | 1.50 | 15 | 16 | 17.77 | 11.5 |
| M12 | 1.75 | 18 | 18 | 20.03 | 14.0 |
| M14 | 2.00 | 21.5 | 22 | 25.30 | 16.0 |
| M16 | 2.00 | 24 | 24 | 26.75 | 18.0 |
| M20 | 2.50 | 30 | 30 | 33.53 | 22.0 |
| M24 | 3.00 | 36 | 36 | 39.98 | 26.0 |
| M27 | 3.00 | 40.5 | 41 | 46.55 | 29.0 |
| M30 | 3.50 | 45 | 46 | 51.28 | 32.0 |
| M33 | 3.50 | 49.5 | 50 | 57.50 | 35.0 |
| M36 | 4.00 | 54 | 55 | 61.31 | 38.0 |
