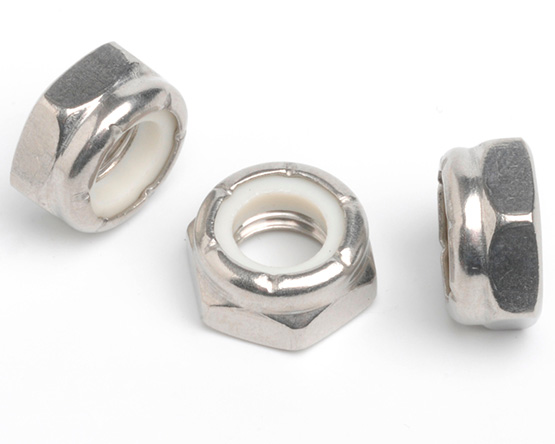

7/16-20 UNF Nylon Insert Thin Nut ASME B18.16.6 A2 Stainless Steel
Part No. U98571620THIN
£116.38 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £116.38 |
| 50 + | £110.56 |
| 100 + | £105.03 |
| 250 + | £99.80 |
| 500 + | £93.63 |
A minimum order quantity of 25 applies to this productThis product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Thread | T.P.I UNC | T.P.I UNF | a (max) | c (max) | d (min) |
|---|---|---|---|---|---|
| 4 | 40 | 48 | 0.251 | 0.124 | 0.075 |
| 5 | 40 | 44 | 0.251 | 0.124 | 0.075 |
| 6 | 32 | 40 | 0.313 | 0.140 | 0.090 |
| 8 | 32 | 36 | 0.345 | 0.187 | 0.110 |
| 10 | 24 | 32 | 0.376 | 0.187 | 0.110 |
| 12 | 24 | 28 | 0.439 | 0.218 | 0.125 |
| 1/4 | 20 | 28 | 0.439 | 0.218 | 0.125 |
| 5/16 | 18 | 24 | 0.502 | 0.255 | 0.158 |
| 3/8 | 16 | 24 | 0.564 | 0.281 | 0.150 |
| 7/16 | 14 | 20 | 0.627 | 0.328 | 0.225 |
| 1/2 | 13 | 20 | 0.752 | 0.328 | 0.190 |
| 9/16 | 12 | 18 | 0.877 | 0.374 | 0.225 |
| 5/8 | 11 | 18 | 0.940 | 0.408 | 0.265 |
| 3/4 | 10 | 16 | 1.084 | 0.421 | 0.288 |
| 7/8 | 9 | 14 | 1.252 | 0.484 | 0.340 |
| 1" | 8 | 12 | 1.440 | 0.578 | 0.405 |
