Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

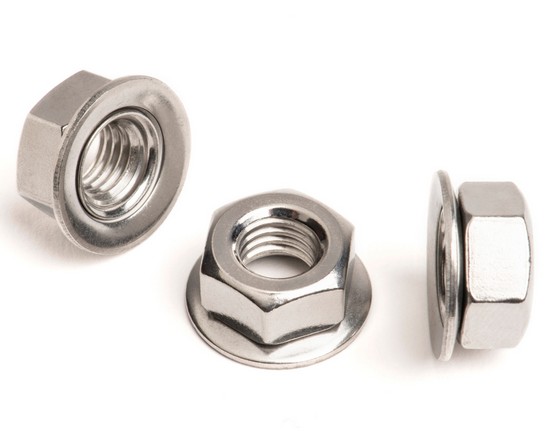

M10 Comby-Nut (22mm Diameter Conical Washer) A2 Stainless Steel
Part No. A908510
£168.42 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £168.42 |
| 400 + | £160.00 |
| 800 + | £152.00 |
| 2000 + | £144.42 |
| 4000 + | £135.49 |
Further Information
| Diameter (d) | Pitch | s | dc | f | h | m |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 8 | 1.25 | 0.60 | 2.4 |
| M4 | 0.70 | 7.00-6.78 | 10 | 1.4 | 0.65 | 3.2 |
| M5 | 0.80 | 8.00-7.78 | 15 | 1.6 | 1.25 | 4.0 |
| M6 | 1.00 | 10.00-9.78 | 18 | 2.2 | 1.50 | 5.0 |
| M8 | 1.25 | 13.00-12.73 | 18 | 2.2 | 1.50 | 6.5 |
| M10 | 1.50 | 15.00-14.73 | 22 | 2.5 | 1.60 | 8.0 |
