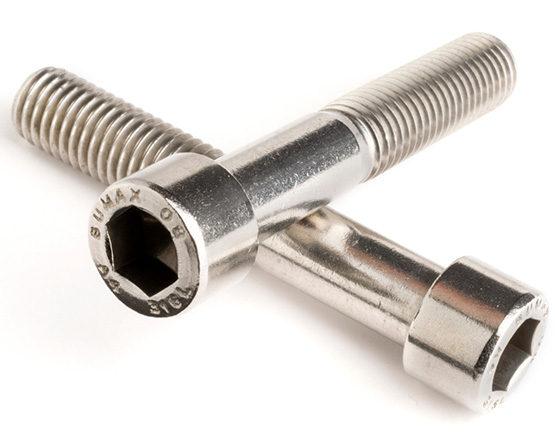

3/8-16 X 2.1/2 Socket Cap Screw ASME B18.3 BUMAX 88
Further Information
| Thread | T.P.I UNC | dk (max) | k (max) | t (min) | s | b |
|---|---|---|---|---|---|---|
| 1/4 | 20 | 0.375 | 0.250 | 0.120 | 3/16 | 1.00 - 1.50 |
| 5/16 | 18 | 0.469 | 0.312 | 0.151 | 1/4 | 1.12 - 1.71 |
| 3/8 | 16 | 0.562 | 0.375 | 0.182 | 5/16 | 1.25 - 1.94 |
