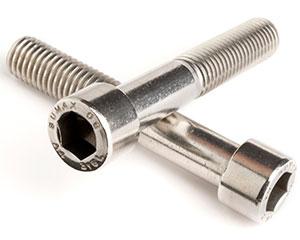

M5 X 40 Socket Cap Screw ISO 4762 BUMAX 88
Part No. BUMAX47620504088
£100.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £100.00 |
| 200 + | £95.00 |
| 400 + | £90.25 |
| 1000 + | £85.75 |
| 2000 + | £80.45 |
A minimum order quantity of 100 applies to this productThis product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) | b (max) |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 3.00-2.86 | 2.5 | 1.3 | 18 |
| M4 | 0.70 | 7.00-6.78 | 4.00-3.82 | 3.0 | 2.0 | 20 |
| M5 | 0.80 | 8.50-8.28 | 5.00-4.82 | 4.0 | 2.5 | 22 |
| M6 | 1.00 | 10.00-9.78 | 6.00-5.82 | 5.0 | 3.0 | 24 |
| M8 | 1.25 | 13.00-12.73 | 8.00-7.64 | 6.0 | 4.0 | 28 |
| M10 | 1.50 | 16.00-15.73 | 10.00-9.64 | 8.0 | 5.0 | 32 |
| M12 | 1.75 | 18.00-17.73 | 12.00-11.73 | 10 | 6.0 | 36 |
| M16 | 2.00 | 24.00-23.67 | 16.00-15.73 | 14 | 8.0 | 44 |
| M20 | 2.50 | 30.00-29.67 | 20.00-19.67 | 17 | 10 | 52 |
| M24 | 3.00 | 36.00-35.61 | 24.00-23.67 | 19 | 12 | 60 |
