Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

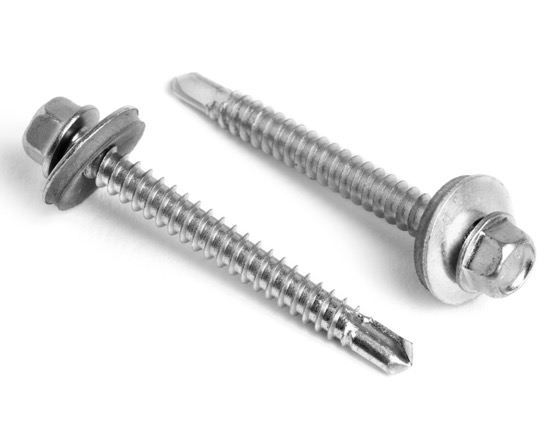

5.5 X 135 Hexagon Head Bi-Metal Tek 3 Screw + 16mm EPDM Washer A2 / SAE C1022
Part No. ABMBW5.5-135-3
£162.03 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £162.03 |
| 200 + | £153.93 |
| 400 + | £146.23 |
| 1000 + | £138.94 |
| 2000 + | £130.35 |
Further Information
| Gauge / Metric | L | dk | H+U | A | P | dp | a (min) | Lt |
|---|---|---|---|---|---|---|---|---|
| #12 (5.5) | 25 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 25 |
| #12 (5.5) | 38 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 38 |
| #12 (5.5) | 50 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 50 |
| #12 (5.5) | 75 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 75 |
| #12 (5.5) | 100 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 75 |
| #12 (5.5) | 135 | 11-10 | 5.45-5.15 | 8 | 1.8 | 4-75-4.65 | 6.8 | 75 |
