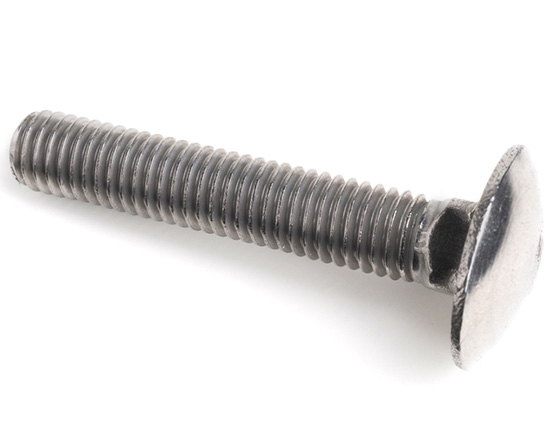

M16 X 40 Fully Threaded Carriage Bolt DIN 603 A4 Stainless Steel
Part No. A6031604040A4
£913.04 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £913.04 |
| 50 + | £867.39 |
| 100 + | £824.02 |
| 250 + | £782.93 |
| 500 + | £734.54 |
Further Information
| Diameter (d) | Pitch | dk | k | v | f |
|---|---|---|---|---|---|
| M5 | 0.80 | 13.55-12.45 | 3.30-2.70 | 5.48-4.52 | 4.10-2.90 |
| M6 | 1.00 | 16.55-15.45 | 3.88-3.12 | 6.48-5.52 | 4.60-3.40 |
| M8 | 1.25 | 20.65-19.35 | 4.88-4.12 | 8.58-7.42 | 5.60-4.40 |
| M10 | 1.50 | 24.65-23.35 | 5.38-4.62 | 10.58-9.42 | 6.60-5.40 |
| M12 | 1.75 | 30.65-29.35 | 6.95-6.05 | 12.70-11.30 | 8.75-7.25 |
| M16 | 2.00 | 38.80-37.20 | 8.95-8.05 | 16.70-15.30 | 12.90-11.10 |
