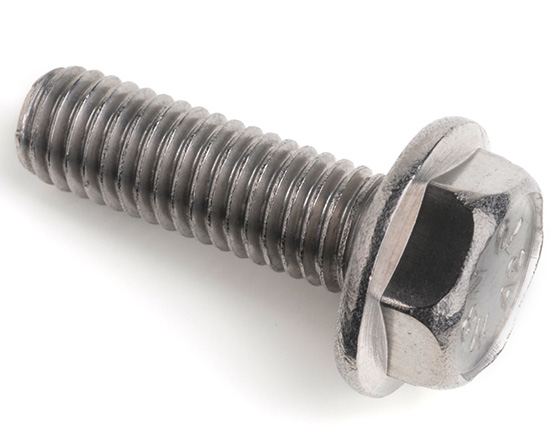

M10 X 80/80 FLANGED HEXAGON BOLT DIN 6921 A4-70 STAINLESS STEEL
£161.00 (exc VAT) per 100
Part No. A692110080A4
£161.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £161.00 |
| 200 + | £152.95 |
| 400 + | £145.30 |
| 1000 + | £138.06 |
| 2000 + | £129.52 |
This product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dc (max) | s | k (max) | k1 (min) | c (min) |
|---|---|---|---|---|---|---|
| M5 | 0.80 | 11.80 | 8.00-7.78 | 5.40 | 2.0 | 1.0 |
| M6 | 1.00 | 14.20 | 10.00-9.78 | 6.60 | 2.5 | 1.1 |
| M8 | 1.25 | 18.00 | 13.00-12.73 | 8.10 | 3.2 | 1.2 |
| M10 | 1.50 | 22.30 | 15.00-14.73 | 9.20 | 3.6 | 1.5 |
| M12 | 1.75 | 22.30 | 16.00-15.73 | 11.50 | 4.6 | 1.8 |
