Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

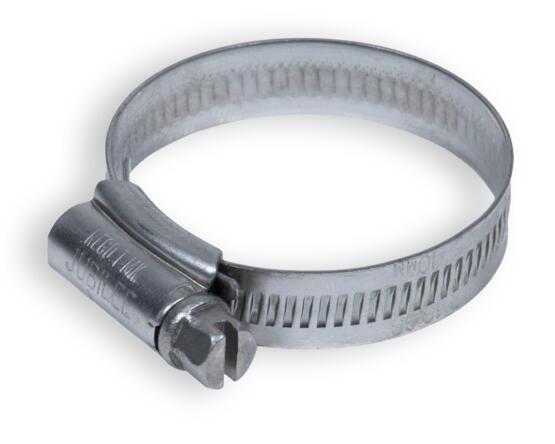

27 (16-27mm) JUBILEE CLIP LIGHT RANGE (LR027SS) A2 STAINLESS STEEL
£180.32 (exc VAT) per 100
Part No. AJUBLR27
£180.32 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 20 + | £180.32 |
| 40 + | £171.30 |
| 80 + | £162.74 |
| 200 + | £154.62 |
| 400 + | £145.07 |
Further Information
| Min Diameter (mm) | Max Diameter (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (PSi) |
|---|---|---|---|---|---|---|
| 9.5 | 12 | 9.3 | 0.7 | 3.4 | 4.5 | 203 |
| 11 | 16 | 9.3 | 0.7 | 3.4 | 4.5 | 203 |
| 13 | 20 | 9.3 | 0.7 | 3.4 | 4.5 | 203 |
| 12 | 22 | 9.3 | 0.7 | 3.4 | 4.5 | 182 |
| 16 | 27 | 9.3 | 0.7 | 3.4 | 4.5 | 182 |
| 20 | 32 | 9.3 | 0.7 | 3.4 | 4.5 | 92 |
| 25 | 40 | 9.3 | 0.7 | 4.5 | 6.0 | 92 |
| 30 | 45 | 9.3 | 0.7 | 4.5 | 6.0 | 92 |
| 32 | 50 | 9.3 | 0.7 | 4.5 | 6.0 | 92 |
| 40 | 60 | 9.3 | 0.7 | 4.5 | 6.0 | 92 |
| 50 | 70 | 9.3 | 0.7 | 4.5 | 6.0 | 92 |
| 60 | 80 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 70 | 90 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 80 | 100 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 90 | 110 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 100 | 120 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 110 | 130 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 120 | 140 | 9.3 | 0.7 | 4.5 | 6.0 | 39 |
| 130 | 150 | 9.3 | 0.7 | 4.5 | 6.0 | 17 |
| 140 | 160 | 9.3 | 0.7 | 4.5 | 6.0 | 17 |
