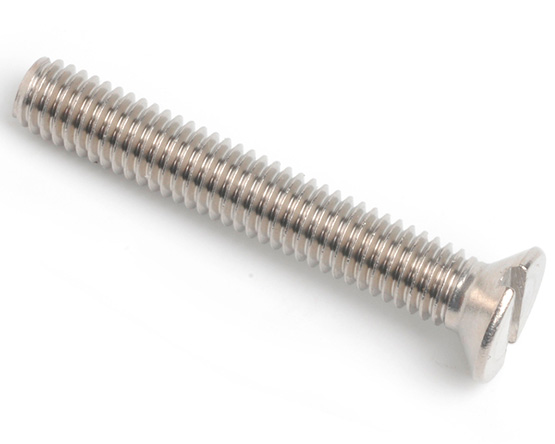

M5 X 90 Slot Countersunk Machine Screw DIN 963 A4 Stainless Steel
Part No. A9630590A4
£70.60 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £70.60 |
| 400 + | £67.07 |
| 800 + | £63.72 |
| 2000 + | £60.54 |
| 4000 + | £56.80 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k (max) | n (nom) | t (min) |
|---|---|---|---|---|---|
| M1.0 | 0.25 | 1.90-1.76 | 0.60 | 0.25 | 0.20 |
| M1.2 | 0.25 | 2.30-2.06 | 0.72 | 0.30 | 0.25 |
| M1.4 | 0.30 | 2.60-2.46 | 0.84 | 0.30 | 0.28 |
| M1.6 | 0.35 | 3.00-2.70 | 1.00 | 0.40 | 0.32 |
| M2 | 0.40 | 3.80-3.50 | 1.20 | 0.50 | 0.40 |
| M2.5 | 0.45 | 4.70-4.40 | 1.50 | 0.60 | 0.50 |
| M3 | 0.50 | 5.60-5.20 | 1.65 | 0.80 | 0.60 |
| M3.5 | 0.60 | 7.30-6.14 | 2.35 | 0.80 | 0.70 |
| M4 | 0.70 | 8.40-7.14 | 2.70 | 1.20 | 0.80 |
| M5 | 0.80 | 9.30-8.84 | 2.70 | 1.20 | 1.00 |
| M6 | 1.00 | 11.30-10.57 | 3.30 | 1.60 | 1.20 |
| M8 | 1.25 | 15.80-14.07 | 4.60 | 2.00 | 1.60 |
| M10 | 1.50 | 18.30-17.57 | 5.00 | 2.50 | 2.00 |
| M12 | 1.75 | 22.00-21.48 | 6.00 | 3.00 | 2.40 |
| M16 | 2.00 | 29.00-28.48 | 8.00 | 4.00 | 3.20 |
