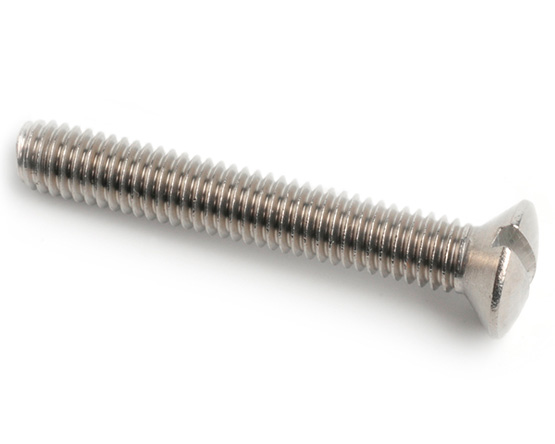

6-32 UNC X 5/16 Slot Raised Countersunk Machine Screw ASME B18.6.3 A2 Stainless Steel

6-32 X 5/16 SLOT RAISED CSK ANSI B18.6.3 A2 ST/ST

6-32 X 5/16 SLOT RAISED CSK ANSI B18.6.3 A2 ST/ST

6-32 X 5/16 SLOT RAISED CSK ANSI B18.6.3 A2 ST/ST

Part No. U9646320312

SHOP FOR MORE SLOT RAISED COUNTERSUNK MACHINE SCREWS

Further Information

Thread	T.P.I UNC	T.P.I UNF	a	h	c	j (max)	t (max)
2	56	64	0.162-0.144	0.051	0.029	0.031	0.045
4	40	48	0.212-0.191	0.067	0.037	0.039	0.059
5	40	44	0.237-0.215	0.075	0.041	0.043	0.067
6	32	40	0.262-0.238	0.083	0.045	0.048	0.074
8	32	36	0.312-0.285	0.100	0.052	0.054	0.088
10	24	32	0.362-0.333	0.116	0.060	0.060	0.103
1/4	20	28	0.477-0.442	0.153	0.079	0.075	0.136
