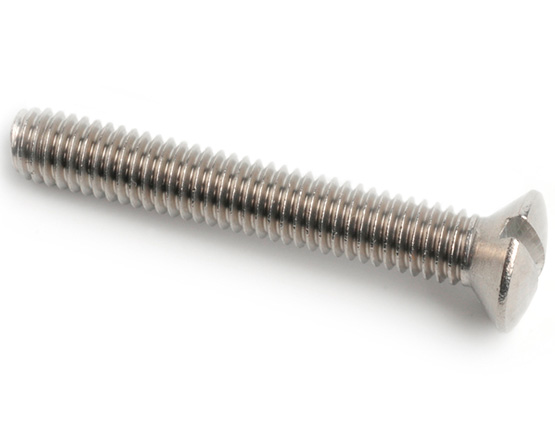

M6 X 40 Slot Raised Countersunk Machine Screw DIN 964 A4 Stainless Steel
Part No. A9640640A4
£48.23 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £48.23 |
| 400 + | £45.82 |
| 800 + | £43.53 |
| 2000 + | £41.36 |
| 4000 + | £38.80 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k (max) | f | n (nom) | t (min) |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 3.80-3.50 | 1.20 | 0.50 | 0.50 | 0.80 |
| M2.5 | 0.45 | 4.70-4.40 | 1.50 | 0.60 | 0.60 | 1.00 |
| M3 | 0.50 | 5.60-5.20 | 1.65 | 0.70 | 0.80 | 1.20 |
| M4 | 0.70 | 8.40-7.14 | 2.70 | 1.00 | 1.00 | 1.60 |
| M5 | 0.80 | 9.30-8.84 | 2.70 | 1.20 | 1.20 | 2.00 |
| M6 | 1.00 | 11.30-10.57 | 3.30 | 1.40 | 1.60 | 2.40 |
| M8 | 1.25 | 15.80-14.07 | 4.65 | 2.00 | 2.00 | 3.20 |
| M10 | 1.50 | 18.30-17.50 | 5.00 | 2.30 | 2.50 | 3.80 |
