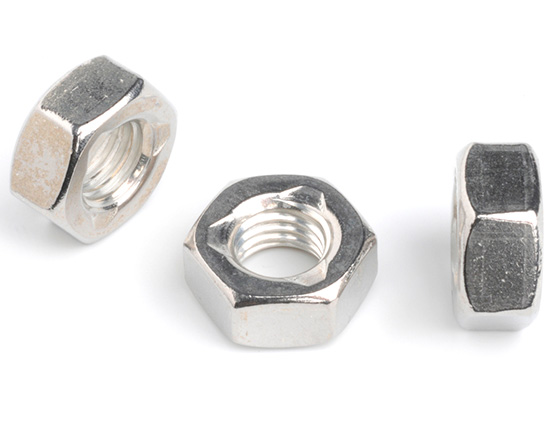

M16 Allmetal Self Locking Nut Sim.980 A2 Stainless Steel
Part No. A98016
£228.30 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £228.30 |
| 100 + | £216.89 |
| 200 + | £206.04 |
| 500 + | £195.77 |
| 1000 + | £183.67 |
A minimum order quantity of 50 applies to this productThis product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | m (nom) |
|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 2.4 |
| M4 | 0.70 | 7.00-6.78 | 3.20 |
| M5 | 0.80 | 8.00-7.78 | 4.00 |
| M6 | 1.00 | 10.00-9.78 | 5.00 |
| M7 | 1.00 | 11.00-10.73 | 5.50 |
| M8 | 1.25 | 13.00-12.73 | 6.50 |
| M10 | 1.50 | 17.00-16.73 | 8.00 |
| M12 | 1.75 | 19.00-18.67 | 10.00 |
| M14 | 2.00 | 22.00-21.67 | 11.00 |
| M16 | 2.00 | 24.00-23.67 | 13.00 |
| M18 | 2.50 | 27.00-26.16 | 15.00 |
| M20 | 2.50 | 30.00-29.16 | 16.00 |
| M22 | 2.50 | 32.00-31.00 | 18.00 |
| M24 | 3.00 | 36.00-35.00 | 19.00 |
