Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

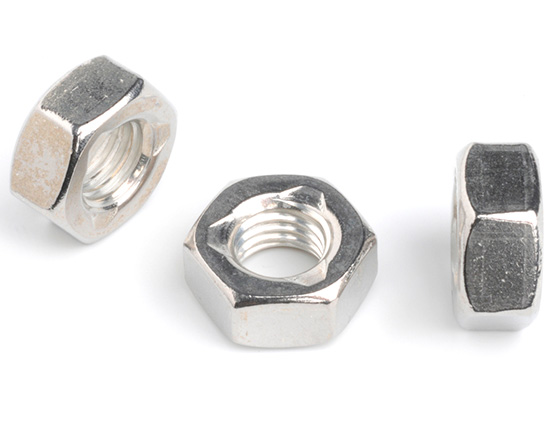

M18 Allmetal Self Locking Nut Sim.980 A4 Stainless Steel
Part No. A98018A4
£614.57 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £614.57 |
| 100 + | £583.84 |
| 200 + | £554.65 |
| 500 + | £526.99 |
| 1000 + | £494.42 |
Further Information
| Diameter (d) | Pitch | s | m (nom) |
|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 2.40 |
| M4 | 0.70 | 7.00-6.78 | 3.20 |
| M5 | 0.80 | 8.00-7.78 | 4.00 |
| M6 | 1.00 | 10.00-9.78 | 5.00 |
| M8 | 1.25 | 13.00-12.73 | 6.50 |
| M10 | 1.50 | 17.00-16.73 | 8.00 |
| M12 | 1.75 | 19.00-18.67 | 10.00 |
| M16 | 2.00 | 24.00-23.67 | 13.00 |
| M20 | 2.50 | 30.00-29.16 | 16.00 |
| M24 | 3.00 | 36.00-35.00 | 19.00 |
