Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

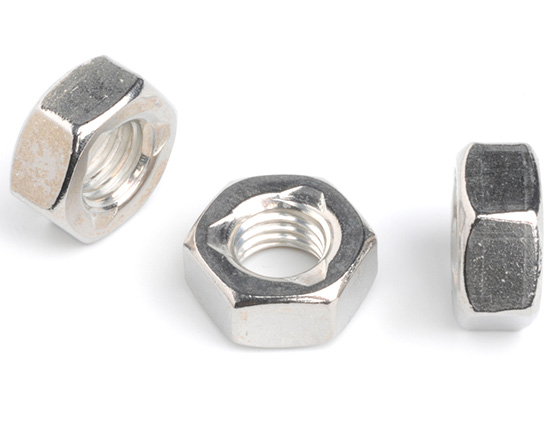

M20 Allmetal Self Locking Nut Sim.980 Duplex 1.4462
Further Information
| Diameter (d) | Pitch | s | m |
|---|---|---|---|
| M6 | 1.00 | 10.00-9.78 | 6.00-5.70 |
| M8 | 1.25 | 13.00-12.73 | 8.00-7.50 |
| M10 | 1.50 | 17.00-16.73 | 10.00-9.00 |
| M12 | 1.75 | 19.00-18.67 | 12.00-11.00 |
| M16 | 2.00 | 24.00-23.67 | 16.00-14.00 |
| M20 | 2.50 | 30.00-29.16 | 20.00-18.00 |
| M24 | 3.00 | 36.00-35.00 | 24.00-22.00 |
