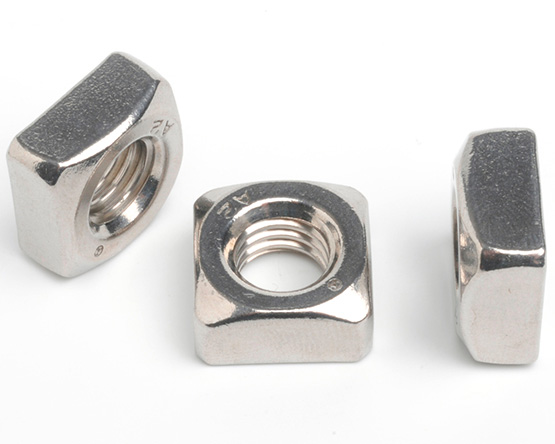

3/8-16 UNC Square Nut ASME B18.2.2 A4 Stainless Steel
Part No. U5623816A4
£192.11 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 20 + | £192.11 |
| 50 + | £182.50 |
| 100 + | £173.38 |
| 250 + | £164.73 |
| 500 + | £154.55 |
A minimum order quantity of 20 applies to this productThis product must be ordered in multiples of 20, quantities will be rounded up as you add them.
Further Information
| Thread (d) | T.P.I UNC | T.P.I UNF | f (max) | h (max) |
|---|---|---|---|---|
| 4 | 40 | 48 | 0.250 | 0.098 |
| 6 | 32 | 40 | 0.312 | 0.114 |
| 8 | 32 | 36 | 0.344 | 0.130 |
| 10 | 24 | 32 | 0.375 | 0.130 |
| 12 | 24 | 28 | 0.438 | 0.161 |
| 1/4 | 20 | 28 | 0.438 | 0.235 |
| 5/16 | 18 | 24 | 0.562 | 0.283 |
| 3/8 | 16 | 24 | 0.625 | 0.346 |
| 7/16 | 14 | 20 | 0.750 | 0.394 |
| 1/2 | 13 | 20 | 0.812 | 0.458 |
| 5/8 | 11 | 18 | 1.000 | 0.569 |
| 3/4 | 10 | 16 | 1.125 | 0.680 |
