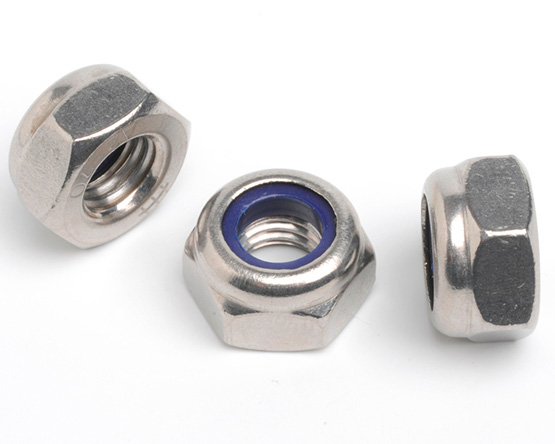

M10 X 1.0 Fine Pitch Nylon Insert Nut DIN 985 A2-70 Stainless Steel
Part No. A98510X1.0
£81.28 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £81.28 |
| 400 + | £77.22 |
| 800 + | £73.36 |
| 2000 + | £69.70 |
| 4000 + | £65.39 |
Further Information
| Diameter (d) | Pitch | s | m (min) | h |
|---|---|---|---|---|
| M8 | 1.00 | 13.00-12.73 | 5.50 | 8.00-7.64 |
| M10 | 1.00 | 17.00-16.73 | 6.50 | 10.00-9.64 |
| M12 | 1.50 | 19.00-18.67 | 8.00 | 12.00-11.57 |
| M14 | 1.50 | 22.00-21.67 | 9.50 | 14.00-13.30 |
| M16 | 1.50 | 24.00-23.67 | 10.50 | 16.00-15.30 |
| M18 | 1.50 | 27.00-26.16 | 13.00 | 18.50-17.66 |
| M20 | 1.50 | 30.00-29.16 | 14.00 | 20.00-18.70 |
| M24 | 1.50 | 36.00-35.00 | 15.00 | 24.00-22.70 |
| M24 | 2.00 | 36.00-35.00 | 15.00 | 24.00-22.70 |
