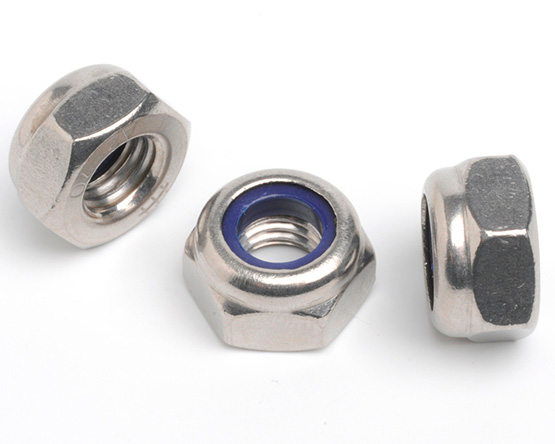

M20 X 1.5 Fine Pitch Nylon Insert Nut DIN 985 A4 Stainless Steel
Part No. A98520X1.5A4
£1017.11 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £1017.11 |
| 100 + | £966.25 |
| 200 + | £917.94 |
| 500 + | £872.17 |
| 1000 + | £818.26 |
Further Information
| Diameter (d) | Pitch | s | m (min) | h |
|---|---|---|---|---|
| M8 | 1.00 | 13.00-12.73 | 5.50 | 8.00-7.64 |
| M10 | 1.00 | 17.00-16.73 | 6.50 | 10.00-9.64 |
| M12 | 1.50 | 19.00-18.67 | 8.00 | 12.00-11.57 |
| M14 | 1.50 | 22.00-21.67 | 9.50 | 14.00-13.30 |
| M16 | 1.50 | 24.00-23.67 | 10.50 | 16.00-15.30 |
| M18 | 1.50 | 27.00-26.16 | 13.00 | 18.50-17.66 |
| M20 | 1.50 | 30.00-29.16 | 14.00 | 20.00-18.70 |
| M24 | 1.50 | 36.00-35.00 | 15.00 | 24.00-22.70 |
| M24 | 2.00 | 36.00-35.00 | 15.00 | 24.00-22.70 |
