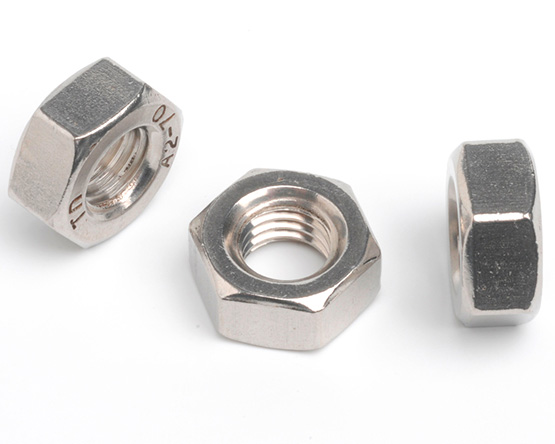

M12 X 1.5 Fine Pitch Hexagon Full Nut DIN 934 A2-70 Stainless Steel
Part No. A93412X1.5
£45.22 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £45.22 |
| 100 + | £42.96 |
| 200 + | £40.81 |
| 500 + | £38.78 |
| 1000 + | £36.38 |
A minimum order quantity of 50 applies to this productThis product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | m |
|---|---|---|---|
| M8 | 0.50 | 13.00-12.73 | 6.50-6.14 |
| M8 | 0.75 | 13.00-12.73 | 6.50-6.14 |
| M8 | 1.00 | 13.00-12.73 | 6.50-6.14 |
| M10 | 1.00 | 17.00-16.73 | 8.00-7.64 |
| M10 | 1.25 | 17.00-16.73 | 8.00-7.64 |
| M12 | 1.00 | 19.00-18.67 | 10.00-9.64 |
| M12 | 1.25 | 19.00-18.67 | 10.00-9.64 |
| M14 | 1.50 | 22.00-21.67 | 11.00-10.30 |
| M16 | 1.50 | 24.00-23.67 | 13.00-12.30 |
| M18 | 1.50 | 27.00-26.16 | 15.00-14.30 |
| M20 | 1.50 | 30.00-29.16 | 16.00-14.90 |
| M20 | 2.00 | 30.00-29.16 | 16.00-14.90 |
| M22 | 1.50 | 32.00-31.00 | 18.00-16.90 |
| M24 | 1.50 | 36.00-35.00 | 19.00-17.70 |
| M24 | 2.00 | 36.00-35.00 | 19.00-17.70 |
| M27 | 1.50 | 41.00-40.00 | 22.00-20.70 |
| M27 | 2.00 | 41.00-40.00 | 22.00-20.70 |
| M30 | 1.50 | 46.00-45.00 | 24.00-22.70 |
| M30 | 2.00 | 46.00-45.00 | 24.00-22.70 |
| M33 | 1.50 | 50.00-49.00 | 26.00-24.70 |
| M33 | 2.00 | 50.00-49.00 | 26.00-24.70 |
| M36 | 1.50 | 55.00-53.80 | 29.00-27.40 |
| M36 | 3.00 | 55.00-53.80 | 29.00-27.40 |
