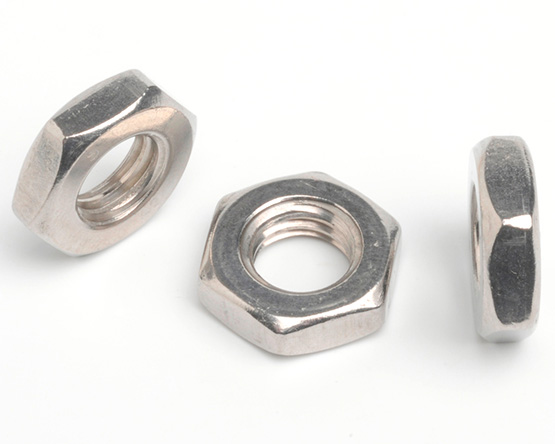

M22 X 1.5 Fine Pitch Hexagon Thin Nut DIN 439 A2-035 Stainless Steel
Part No. A43922X1.5
£215.32 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £215.32 |
| 50 + | £204.55 |
| 100 + | £194.33 |
| 250 + | £184.64 |
| 500 + | £173.22 |
A minimum order quantity of 25 applies to this productThis product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | m |
|---|---|---|---|
| M8 | 0.75 | 13.00-12.73 | 4.00-3.70 |
| M8 | 1.00 | 13.00-12.73 | 4.00-3.70 |
| M10 | 1.00 | 17.00-15.73 | 5.00-4.70 |
| M10 | 1.25 | 17.00-15.73 | 5.00-4.70 |
| M12 | 1.00 | 19.00-17.73 | 6.00-5.70 |
| M12 | 1.25 | 19.00-17.73 | 6.00-5.70 |
| M12 | 1.50 | 19.00-17.73 | 6.00-5.70 |
| M14 | 1.50 | 22.00-20.67 | 7.00-6.42 |
| M16 | 1.00 | 24.00-23.67 | 8.00-7.42 |
| M16 | 1.50 | 24.00-23.67 | 8.00-7.42 |
| M18 | 1.50 | 27.00-26.16 | 9.00-8.42 |
| M20 | 1.50 | 30.00-29.16 | 10.00-9.10 |
| M20 | 2.00 | 30.00-29.16 | 10.00-9.10 |
| M22 | 1.50 | 32.00-31.00 | 11.00-9.90 |
| M22 | 2.00 | 32.00-31.00 | 11.00-9.90 |
| M24 | 1.50 | 36.00.35.00 | 12.00-10.90 |
| M24 | 2.00 | 36.00.35.00 | 12.00-10.90 |
| M27 | 1.50 | 41.00-40.00 | 13.50-12.40 |
| M27 | 2.00 | 41.00-40.00 | 13.50-12.40 |
| M30 | 1.50 | 46.00-45.00 | 15.00-13.90 |
| M30 | 2.00 | 46.00-45.00 | 15.00-13.90 |
| M33 | 1.50 | 50.00-49.00 | 16.50-15.40 |
| M33 | 2.00 | 50.00-49.00 | 16.50-15.40 |
