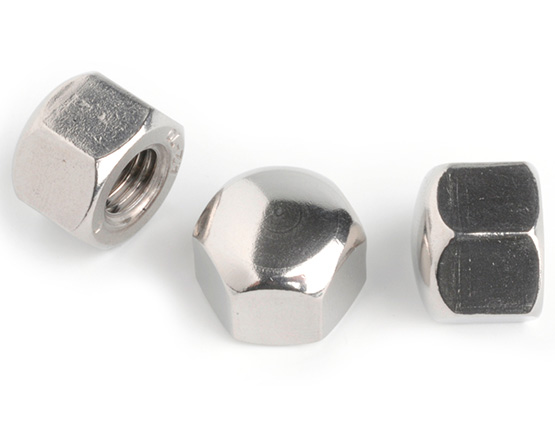

M24 Hexagon Cap Nut DIN 917 A4 Stainless Steel
Part No. A91724A4
£1519.45 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 10 + | £1519.45 |
| 20 + | £1443.48 |
| 40 + | £1371.30 |
| 100 + | £1302.93 |
| 200 + | £1222.40 |
A minimum order quantity of 10 applies to this productThis product must be ordered in multiples of 10, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | t | h |
|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.28 | 4.14-3.64 | 5.00-4.70 |
| M4 | 0.70 | 7.00-6.78 | 4.64-4.16 | 5.50-5.20 |
| M5 | 0.80 | 8.00-7.78 | 5.44-4.96 | 7.00-6.64 |
| M6 | 1.00 | 10.00-9.78 | 7.29-6.71 | 9.00-8.64 |
| M8 | 1.25 | 13.00-12.73 | 9.79-9.21 | 12.00-11.57 |
| M10 | 1.50 | 17.00-16.73 | 11.35-10.65 | 14.00-13.57 |
| M12 | 1.75 | 19.00-18.73 | 13.85-13.15 | 16.00-15.57 |
| M14 | 2.00 | 22.00-21.67 | 15.35-14.65 | 18.00-17.57 |
| M16 | 2.00 | 24.00-23.67 | 17.35-16.65 | 20.00-19.48 |
| M18 | 2.50 | 27.00-26.16 | 19.42-18.58 | 22.00-21.48 |
| M20 | 2.50 | 30.00-29.16 | 21.42-20.58 | 25.00-24.48 |
| M22 | 2.50 | 32.00-31.00 | 22.42-21.58 | 28.00-27.48 |
| M24 | 3.00 | 36.00-35.00 | 24.42-23.58 | 30.00-29.48 |
| M27 | 3.00 | 41.00-40.00 | 26.42-25.58 | 32.00-31.48 |
| M30 | 3.50 | 46.00-45.00 | 28.42-27.58 | 34.00-33.48 |
| M36 | 4.0 | 55.00-53.80 | 36.50-35.50 | 44.00-43.48 |
