Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

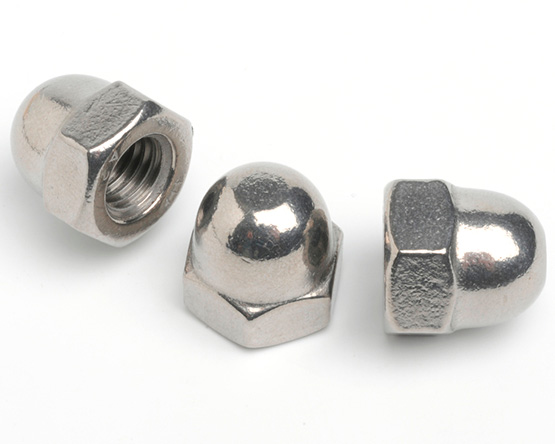

3/8-16 UNC Dome Nut SAE J483A A4 Stainless Steel
Part No. U15873816A4
£234.49 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 20 + | £234.49 |
| 50 + | £222.77 |
| 100 + | £211.63 |
| 250 + | £201.08 |
| 500 + | £188.65 |
A minimum order quantity of 20 applies to this productThis product must be ordered in multiples of 20, quantities will be rounded up as you add them.
Further Information
| Thread | T.P.I UNC | T.P.I UNF | w | h | p |
|---|---|---|---|---|---|
| 4 | 40 | 48 | 0.250 | * | 0.250 |
| 5 | 40 | 44 | 0.250 | * | 0.250 |
| 6 | 32 | 40 | 0.312 | 0.171 | 0.296 |
| 8 | 32 | 36 | 0.312 | 0.171 | 0.312 |
| 10 | 24 | 32 | 0.375 | 0.203 | 0.390 |
| 12 | 24 | 28 | 0.375 | 0.203 | 0.421 |
| 1/4 | 20 | 28 | 0.437 | 0.234 | 0.468 |
| 5/16 | 18 | 24 | 0.562 | 0.281 | 0.531 |
| 3/8 | 16 | 24 | 0.625 | 0.312 | 0.625 |
| 7/16 | 14 | 20 | 0.625 | 0.343 | 0.718 |
| 1/2 | 13 | 20 | 0.750 | 0.421 | 0.812 |
| 5/8 | 11 | 18 | 1.000 | 0.531 | 0.984 |
| 3/4 | 10 | 16 | 1.062 | 0.593 | 1.187 |
