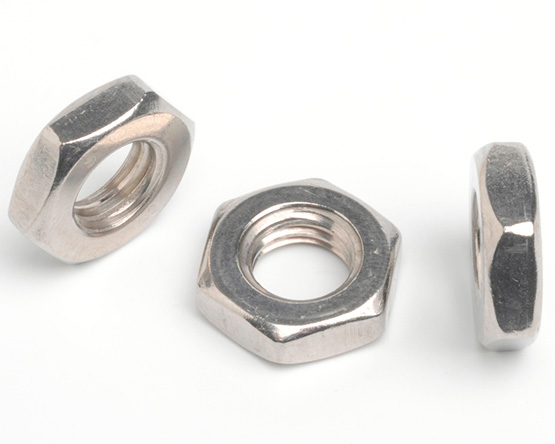

1/4-20 UNC Hexagon Lock Nut ASME B18.2.2 A2 Stainless Steel
Part No. U4391420
£16.94 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £16.94 |
| 500 + | £16.09 |
| 1000 + | £15.29 |
| 2500 + | £14.53 |
| 5000 + | £13.63 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Thread | T.P.I UNC | T.P.I UNF | f (max) | h (max) |
|---|---|---|---|---|
| 1/4 | 20 | 28 | 0.438 | 0.163 |
| 5/16 | 18 | 24 | 0.500 | 0.195 |
| 3/8 | 16 | 24 | 0.562 | 0.227 |
| 7/16 | 14 | 20 | 0.688 | 0.260 |
| 1/2 | 13 | 20 | 0.750 | 0.323 |
| 9/16 | 12 | 18 | 0.875 | 0.324 |
| 5/8 | 11 | 18 | 0.938 | 0.387 |
| 3/4 | 10 | 16 | 1.125 | 0.446 |
| 7/8 | 9 | 14 | 1.312 | 0.510 |
| 1" | 8 | 12 | 1.500 | 0.575 |
| 1.1/4" | 7 | 12 | 1.875 | 0.782 |
| 1.1/2" | 6 | 12 | 2.250 | 0.911 |
