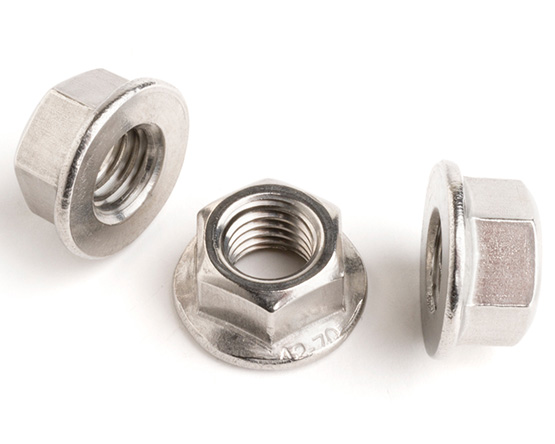

M8 Hexagon Flange Nut No-Serration DIN 6923 A4 Stainless Steel

Part No. A692308UA4

£25.39 (exc VAT) per 100

Quantity Breaks	Price per 100
200 +	£25.39
400 +	£24.12
800 +	£22.91
2000 +	£21.77
4000 +	£20.43

A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.

SHOP FOR MORE NON SERRATED FLANGED NUTS DIN 6923

Further Information

Diameter (d)	Pitch	s	dc (max)	m1	m
M3	0.50	5.50-5.32	8.00	1.70	4.00-3.70
M4	0.70	7.00-6.78	10.00	1.90	4.50-4.20
M5	0.80	8.00-7.78	11.80	2.20	5.00-4.70
M6	1.00	10.00-9.78	14.20	3.10	6.00-5.70
M8	1.25	13.00-12.73	17.90	4.50	8.00-7.60
M10	1.50	15.00-14.73	21.80	5.50	10.00-9.60
M12	1.75	18.00-17.73	26.00	6.70	12.00-11.60
M16	2.00	24.00-23.67	34.50	9.00	16.00-15.30
