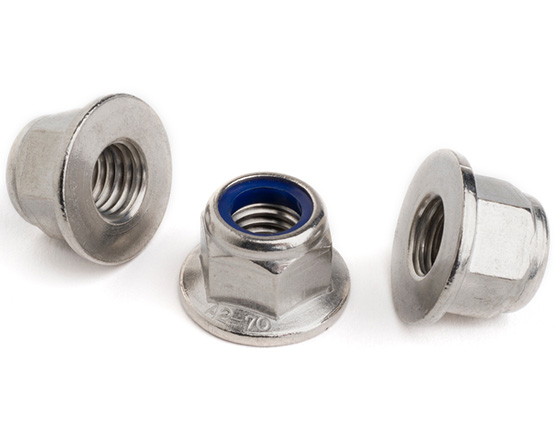

M8 Nylon Insert Non-Serrated Flange Nut DIN 6926 A2 Stainless Steel
Part No. A692608NS
£36.30 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £36.30 |
| 200 + | £34.48 |
| 400 + | £32.76 |
| 1000 + | £31.13 |
| 2000 + | £29.20 |
Further Information
| Diameter (d) | Pitch | s | dc (max) | m1 | m (min) | k |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 8.00 | 1.70 | 3.70 | 5.10-4.74 |
| M4 | 0.70 | 7.00-6.78 | 10.00 | 1.90 | 4.20 | 6.10-5.74 |
| M5 | 0.80 | 8.00-7.78 | 11.80 | 2.20 | 4.70 | 7.10-6.74 |
| M6 | 1.00 | 10.00-9.78 | 14.20 | 3.10 | 5.70 | 9.10-8.74 |
| M8 | 1.25 | 13.00-12.73 | 17.90 | 4.50 | 7.60 | 11.10-10.67 |
| M10 | 1.50 | 15.00-14.73 | 21.80 | 5.50 | 9.60 | 13.50-13.07 |
| M12 | 1.75 | 18.00-17.73 | 26.00 | 6.70 | 11.60 | 16.10-15.67 |
