Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

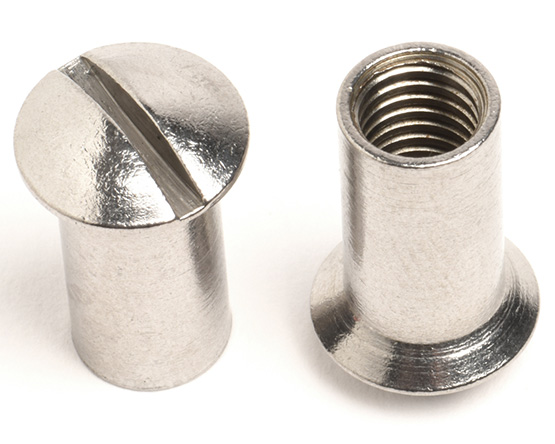

M4 X 15 Slot Raised Countersunk Sleeve Nut (5mm Diameter) A1 Stainless Steel
Part No. A906104X15
£171.15 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £171.15 |
| 200 + | £162.59 |
| 400 + | £154.46 |
| 1000 + | £146.76 |
| 2000 + | £137.69 |
A minimum order quantity of 100 applies to this productThis product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | L | d2 | dk | k | n | L2 |
|---|---|---|---|---|---|---|---|
| M4 | 0.70 | 12 | 5.0 | 7.0 | 1.5 | 1.2 | 7.0 |
| M4 | 0.70 | 15 | 5.0 | 7.0 | 1.5 | 1.2 | 8.0 |
| M5 | 0.80 | 14 | 6.5 | 9.0 | 1.5 | 1.2 | 9.0 |
| M5 | 0.80 | 15 | 6.0 | 9.0 | 1.5 | 1.2 | 9.0 |
| M6 | 1.00 | 15 | 7.5 | 10 | 1.5 | 1.6 | 9.0 |
| M8 | 1.25 | 15 | 10 | 15 | 3.0 | 2.0 | 9.0 |
| M8 | 1.25 | 20 | 10 | 15 | 3.0 | 2.0 | 9.0 |
