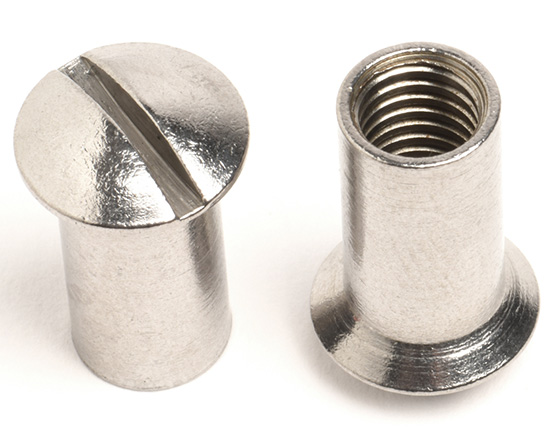

M4 X 12 Slot Raised Countersunk Sleeve Nut (5mm Diameter) A4 Stainless Steel
Part No. A906104X12A4
£240.54 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £240.54 |
| 200 + | £228.51 |
| 400 + | £217.09 |
| 1000 + | £206.26 |
| 2000 + | £193.51 |
Further Information
| Diameter (d) | Pitch | L | d2 | dk | k | n | L2 |
|---|---|---|---|---|---|---|---|
| M4 | 0.70 | 12 | 5.0 | 7.0 | 1.5 | 1.2 | 7.0 |
| M5 | 0.80 | 15 | 6.0 | 9.0 | 1.5 | 1.2 | 9.0 |
| M6 | 1.00 | 15 | 7.5 | 10 | 1.5 | 1.6 | 9.0 |
| M8 | 1.25 | 20 | 10 | 15 | 3.0 | 2.0 | 9.0 |
