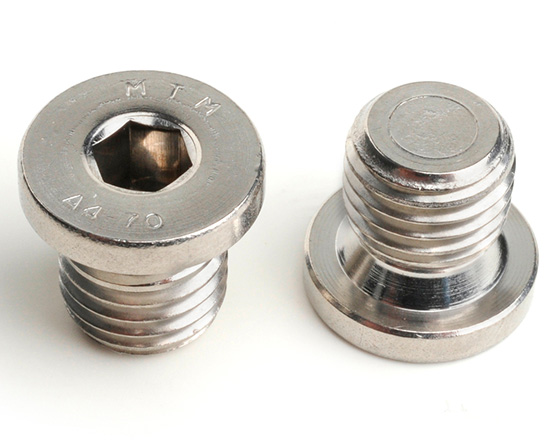

M30 X 2.0 Socket Pipe Plug With Collar DIN 908 A2 Stainless Steel
Further Information
| Diameter (d1) | d2 | L | c | s (nom) |
|---|---|---|---|---|
| M10 | 14 | 11 | 3 | 5.0 |
| M12 | 17 | 15 | 3 | 6.0 |
| M14 | 19 | 15 | 3 | 6.0 |
| M16 | 21 | 15 | 3 | 8.0 |
| M18 | 23 | 16 | 4 | 8.0 |
| M20 | 25 | 18 | 4 | 10 |
| M22 | 27 | 18 | 4 | 10 |
| M24 | 29 | 18 | 4 | 12 |
| M26 | 31 | 20 | 4 | 12 |
| M27 | 32 | 20 | 4 | 12 |
| M30 | 36 | 20 | 4 | 17 |
