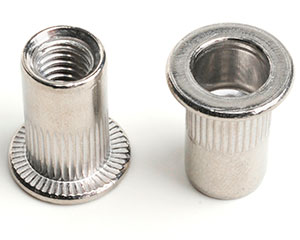

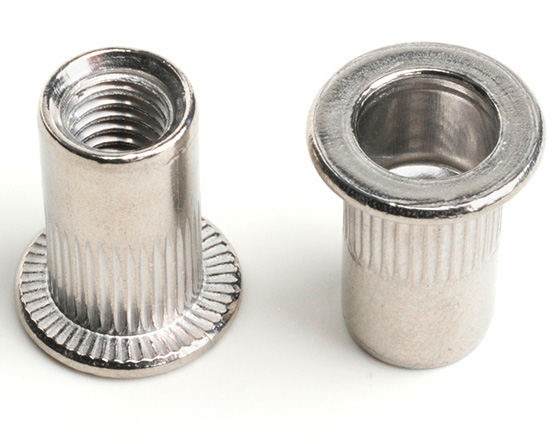

M5 X 12 Flat Head Knurled Insert Nut (Grip=0.3-3.0) A2
Part No. ARIVEND0530
£33.83 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 250 + | £33.83 |
| 500 + | £32.14 |
| 1000 + | £30.53 |
| 2500 + | £29.01 |
| 5000 + | £27.22 |
A minimum order quantity of 250 applies to this productThis product must be ordered in multiples of 250, quantities will be rounded up as you add them.
Further Information
| m | L | d1 | d2 | L1 | k | Shear (N) | Tensile (N) |
|---|---|---|---|---|---|---|---|
| M3 | 10 | 4.9 | 7 | 5.5 | 0.9 | 1760 | 5390 |
| M4 | 10 | 5.9 | 9 | 5.5 | 1.0 | 3920 | 6860 |
| M4 | 11.5 | 5.9 | 9 | 7.5 | 1.0 | 3920 | 6860 |
| M5 | 12 | 6.9 | 10 | 6.0 | 1.0 | 4510 | 11760 |
| M5 | 15 | 6.9 | 10 | 8.0 | 1.0 | 4510 | 11760 |
| M6 | 14.5 | 8.9 | 13 | 8.0 | 1.5 | 4900 | 18630 |
| M6 | 16 | 8.9 | 13 | 10 | 1.5 | 4900 | 18630 |
| M8 | 16 | 10.9 | 16 | 8.5 | 1.5 | 6860 | 27450 |
| M8 | 18.5 | 10.9 | 16 | 11 | 1.5 | 6860 | 27450 |
| M10 | 17 | 12.9 | 19 | 10 | 2.0 | 7840 | 29410 |
| M10 | 22 | 12.9 | 19 | 13 | 2.0 | 7840 | 29410 |
| M12 | 23 | 15.9 | 23 | 12 | 2.0 | 9800 | 52950 |
