Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

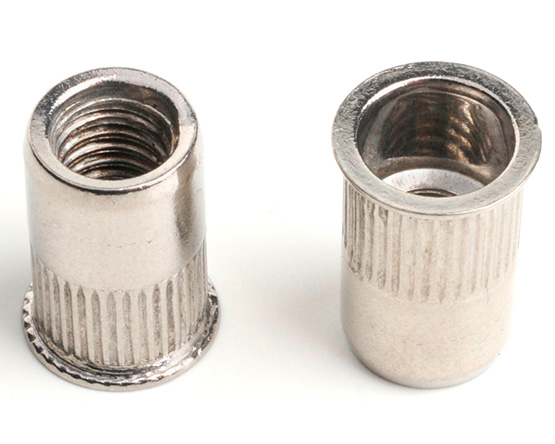

M4 X 10 Reduced Countersunk Knurled Insert Nut (Grip=0.5-3.0) A2
Part No. ARIVENR0430
£30.01 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 250 + | £30.01 |
| 500 + | £28.51 |
| 1000 + | £27.08 |
| 2500 + | £25.73 |
| 5000 + | £24.14 |
Further Information
| m | L | d1 | d2 | L1 | k | Shear (N) | Tensile (N) |
|---|---|---|---|---|---|---|---|
| M3 | 9 | 4.8 | 5.8 | 4.5 | 1 | 2499 | 5831 |
| M4 | 10 | 5.9 | 7.0 | 5.5 | 1 | 2940 | 6860 |
| M5 | 11.5 | 6.9 | 8.0 | 5.5 | 1 | 4020 | 11760 |
| M6 | 14 | 8.9 | 10 | 6.5 | 1 | 5190 | 18630 |
| M8 | 15.5 | 10.9 | 12 | 7.5 | 1 | 5390 | 25490 |
| M10 | 19.5 | 12.9 | 14.5 | 9.0 | 1 | 5880 | 34320 |
| M12 | 24 | 14.9 | 17 | 10 | 1 | 6174 | 36036 |
