Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

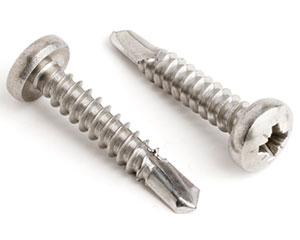

4.8 X 32 POZI PAN SELF DRILLING SCREW DIN 7504M Z A2 STAINLESS STEEL
Part No. A7504N4832
£15.13 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1000 + | £15.13 |
| 2000 + | £14.37 |
| 4000 + | £13.65 |
| 10000 + | £12.97 |
| 20000 + | £12.17 |
A minimum order quantity of 1000 applies to this productThis product must be ordered in multiples of 1000, quantities will be rounded up as you add them.
Further Information
| Metric (d) | dk | k | a (max) | dp (max) | Drive |
|---|---|---|---|---|---|
| 2.9 (#4) | 5.60-5.30 | 2.40-2.15 | 1.90 | 2.30 | #1 |
| 3.5 (#6) | 7.00-6.64 | 2.60-2.35 | 2.25 | 2.80 | #2 |
| 3.9 (#7) | 7.50-7.14 | 2.80-2.55 | 2.40 | 3.10 | #2 |
| 4.2 (#8) | 8.00-7.64 | 3.10-2.80 | 3.00 | 3.60 | #2 |
| 4.8 (#10) | 9.50-9.14 | 3.70-3.40 | 4.40 | 4.10 | #3 |
| 5.5 (#12) | 11.00-10.57 | 4.00-3.70 | 5.25 | 4.80 | #3 |
| 6.3 (#14) | 12.00-11.57 | 4.60-4.30 | 6.00 | 5.80 | #3 |
