Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

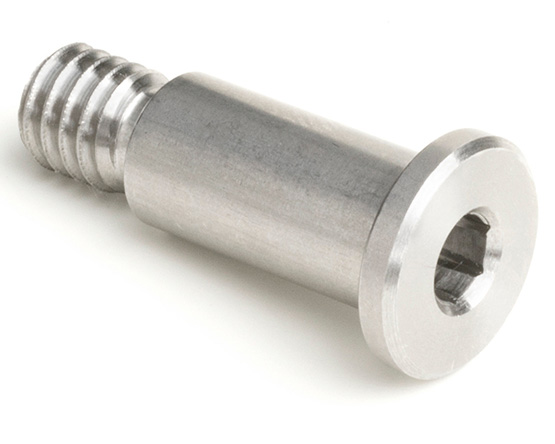

1/8 (4-40 UNC) X 1/4 Precision Low Head Socket Shoulder Screw A2 Stainless Steel
Part No. USS184400250L
£857.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 2 + | £857.00 |
| 5 + | £814.15 |
| 10 + | £773.44 |
| 25 + | £734.88 |
| 50 + | £689.46 |
A minimum order quantity of 2 applies to this productThis product must be ordered in multiples of 2, quantities will be rounded up as you add them.
Further Information
| ds (nom) | ds | d | s | dk | k | b |
|---|---|---|---|---|---|---|
| 3/32" | 0.093-0.092 | 2-56 | 5/64" | 3/16" | 1/16" | 1/8" |
| 1/8" | 0.125-0.124 | 4-40 | 5/64" | 1/4" | 3/32" | 5/32" |
| 5/32" | 0.156-0.155 | 6-32 | 3/32" | 9/32" | 5/64" | 3/16" |
| 3/16" | 0.187-0.186 | 8-32 | 3/32" | 5/16" | 7/64" | 3/16" |
| 1/4" | 0.250-0.249 | 10-24 | 1/8" | 3/8" | 1/8" | 3/8" |
| 1/4" | 0.250-0.249 | 10-32 | 1/8" | 3/8" | 1/8" | 1/4" |
| 5/16" | 0.312-0.311 | 1/4-20 | 5/32" | 7/16" | 1/8" | 7/16" |
| 3/8" | 0.375-0.374 | 1/4-20 | 3/16" | 9/16" | 3/32" | 7/16" |
| 3/8" | 0.375-0.374 | 5/16-18 | 3/16" | 9/16" | 3/32" | 1/2" |
| 1/2" | 0.500-0.498 | 3/8-16 | 1/4" | 3/4" | 3/32" | 5/8" |
