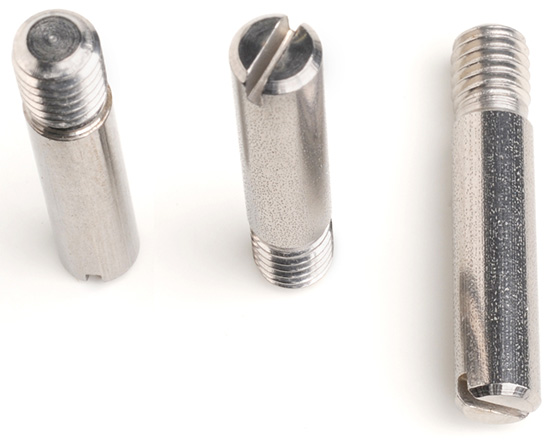

M3 X 10 Slotted Set Screw Part Thread DIN 427 / ISO 2342 A4 Stainless Steel
Further Information
| Diameter (d) | Pitch | b (+2p -0) | n (nom) | t |
|---|---|---|---|---|
| M3 | 0.50 | 3.60 | 0.40 | 1.05-0.80 |
| M4 | 0.70 | 4.80 | 0.60 | 1.42-1.12 |
| M5 | 0.80 | 6.00 | 0.80 | 1.63-1.28 |
| M6 | 1.00 | 7.20 | 1.00 | 2.00-1.60 |
| M8 | 1.25 | 9.60 | 1.20 | 2.50-2.00 |
| M10 | 1.50 | 12.00 | 1.60 | 3.00-2.40 |
