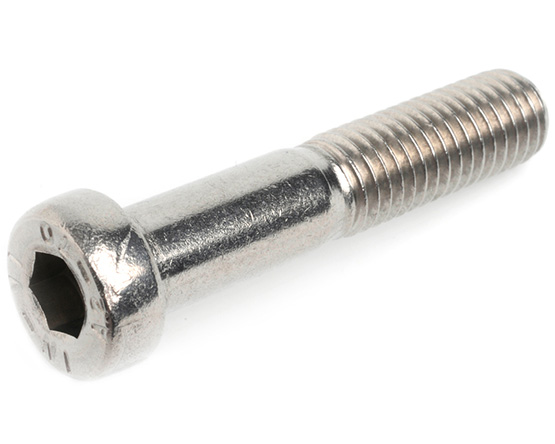

M12 X 20 LOW HEAD SOCKET CAP SCREW DIN 7984 A4-70 STAINLESS STEEL
£160.85 (exc VAT) per 100
Part No. A798412020A4
£160.85 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £160.85 |
| 100 + | £152.81 |
| 200 + | £145.17 |
| 500 + | £137.93 |
| 1000 + | £129.40 |
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (nom) | b (max) |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 2.00-1.86 | 2.0 | 1.5 | 12 |
| M4 | 0.70 | 7.00-6.78 | 2.80-2.66 | 2.5 | 2.3 | 14 |
| M5 | 0.80 | 8.50-8.28 | 3.50-3.32 | 3.0 | 2.7 | 16 |
| M6 | 1.00 | 10.00-9.78 | 4.00-3.82 | 4.0 | 3.0 | 18 |
| M8 | 1.25 | 13.00-12.73 | 5.00-4.82 | 5.0 | 3.8 | 22 |
| M10 | 1.50 | 16.00-15.73 | 6.00-5.82 | 7.0 | 4.5 | 26 |
| M12 | 1.75 | 18.00-17.73 | 7.00-6.78 | 8.0 | 5.0 | 30 |
| M16 | 2.00 | 24.00-23.67 | 9.00-8.78 | 12 | 5.5 | 38 |
| M20 | 2.50 | 30.00-29.67 | 11.00-10.73 | 14 | 7.5 | 46 |
| M24 | 3.00 | 36.00-35.61 | 13.00-12.73 | 17 | 8.0 | 54 |
