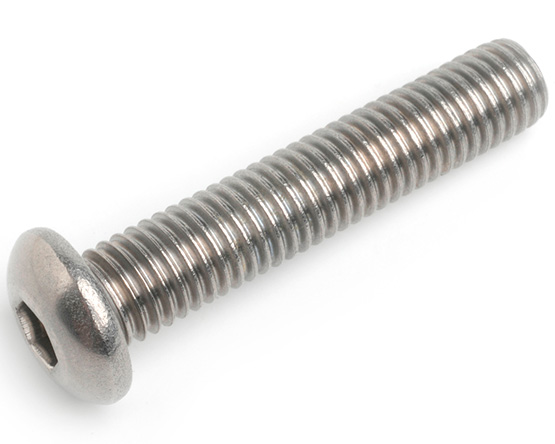

M12 X 40 Socket Button ISO 7380-1 A2 Stainless Steel
Part No. A738012040
£98.54 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £98.54 |
| 100 + | £93.61 |
| 200 + | £88.93 |
| 500 + | £84.50 |
| 1000 + | £79.28 |
A minimum order quantity of 50 applies to this productThis product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) |
|---|---|---|---|---|---|
| M2 | 0.40 | 3.50-3.30 | 1.30-1.10 | 1.3 | 0.80 |
| M2.5 | 0.45 | 4.70-4.50 | 1.50-1.36 | 1.5 | 1.00 |
| M3 | 0.50 | 5.70-5.40 | 1.65-1.40 | 2.0 | 1.04 |
| M3.5 | 0.60 | 6.60-6.30 | 1.90-1.65 | 2.0 | 1.20 |
| M4 | 0.70 | 7.60-7.24 | 2.20-1.95 | 2.5 | 1.30 |
| M5 | 0.80 | 9.50-9.14 | 2.75-2.50 | 3.0 | 1.56 |
| M6 | 1.00 | 10.50-10.07 | 3.30-3.00 | 4.0 | 2.08 |
| M8 | 1.25 | 14.00-13.57 | 4.40-4.10 | 5.0 | 2.60 |
| M10 | 1.50 | 17.50-17.07 | 5.50-5.20 | 6.0 | 3.12 |
| M12 | 1.75 | 21.00-20.46 | 6.60-6.24 | 8.0 | 4.16 |
