Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

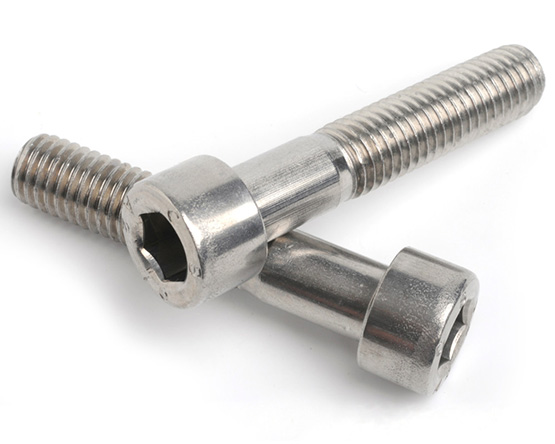

M6 X 20 Socket Cap Screw DIN 912 / ISO 4762 Duplex 1.4462
Part No. AD91206020
£84.96 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £84.96 |
| 1000 + | £80.71 |
| 2000 + | £76.68 |
| 5000 + | £72.85 |
| 10000 + | £68.35 |
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) | b (max) |
|---|---|---|---|---|---|---|
| M6 | 1.00 | 10.00-9.78 | 6.00-5.70 | 5.0 | 3.0 | 24 |
| M8 | 1.25 | 13.00-12.73 | 8.00-7.64 | 6.0 | 4.0 | 28 |
| M10 | 1.50 | 16.00-15.73 | 10.00-9.64 | 8.0 | 5.0 | 32 |
| M12 | 1.75 | 18.00-17.73 | 12.00-11.57 | 10 | 6.0 | 36 |
| M16 | 2.00 | 24.00-23.67 | 16.00-15.57 | 14 | 8.0 | 44 |
