Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

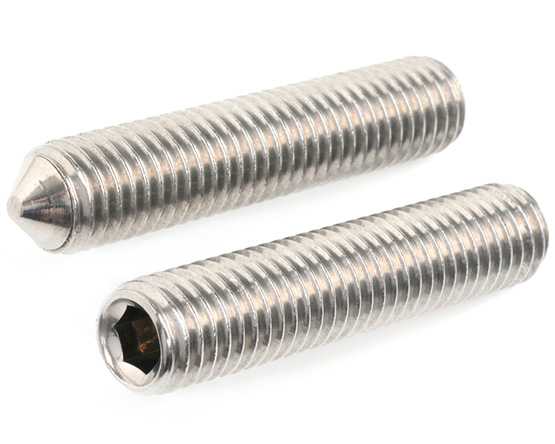

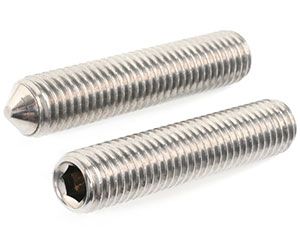

M3 X 6 Socket Set Screw Cone Point DIN 914 / ISO 4027 A4 Stainless Steel
Part No. A9140306A4
£12.34 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £12.34 |
| 1000 + | £11.72 |
| 2000 + | £11.14 |
| 5000 + | £10.58 |
| 10000 + | £9.93 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dt | s (nom) | t |
|---|---|---|---|---|
| M2 | 0.40 | * | 0.90 | 1.7-0.8 |
| M2.5 | 0.45 | * | 1.30 | 2.0-1.2 |
| M3 | 0.50 | * | 1.50 | 2.0-1.2 |
| M4 | 0.70 | * | 2.00 | 2.5-1.5 |
| M5 | 0.80 | * | 2.50 | 3.0-2.0 |
| M6 | 1.00 | 1.50-0.90 | 3.00 | 3.5-2.0 |
| M8 | 1.25 | 2.00-1.40 | 4.00 | 5.0-3.0 |
| M10 | 1.50 | 2.50-1.90 | 5.00 | 6.0-4.0 |
| M12 | 1.75 | 3.00-2.40 | 6.00 | 8.0-4.5 |
| M16 | 2.00 | 4.00-3.25 | 8.00 | 10-6.4 |
| M20 | 2.50 | 5.00-4.25 | 10.0 | 12-8.0 |
