Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

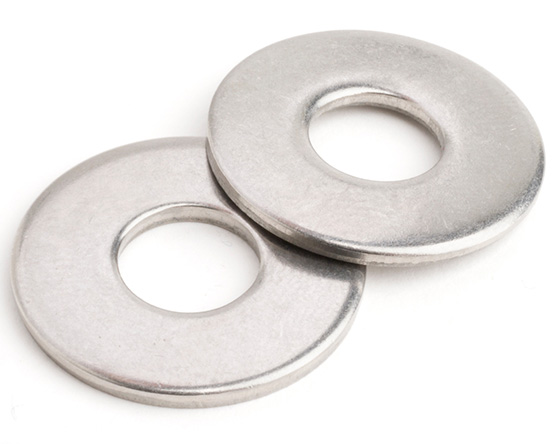

M5 AFNOR FLAT WASHER TYPE L (NFE 25-514) A2 STAINLESS STEEL
£3.33 (exc VAT) per 100
Part No. A2551405L
£3.33 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £3.33 |
| 400 + | £3.16 |
| 800 + | £3.01 |
| 2000 + | £2.86 |
| 4000 + | £2.68 |
Further Information
| Diameter (d) | d1 | d2 | h |
|---|---|---|---|
| M1.6 | 1.84-1.70 | 6.00-5.70 | 0.57-0.43 |
| M2 | 2.34-2.20 | 7.00-6.64 | 0.57-0.43 |
| M2.5 | 2.84-2.70 | 10.00-9.64 | 0.57-0.43 |
| M3 | 3.38-3.20 | 12.00-11.57 | 0.87-0.73 |
| M4 | 4.48-4.30 | 14.00-13.57 | 0.87-0.73 |
| M5 | 5.48-5.30 | 16.00-15.57 | 1.07-0.93 |
| M6 | 6.62-6.40 | 18.00-17.57 | 1.27-1.13 |
| M7 | 7.62-7.40 | 20.00-19.48 | 1.57-1.43 |
| M8 | 8.62-8.40 | 22.00-21.48 | 1.57-1.43 |
| M10 | 10.77-10.50 | 27.00-26.48 | 2.12-1.88 |
| M12 | 13.27-13.00 | 32.00-31.38 | 2.62-2.38 |
| M14 | 15.27-15.00 | 36.00-35.38 | 2.62-2.38 |
| M16 | 17.27-17.00 | 40.00-39.38 | 3.12-2.88 |
| M18 | 19.33-19.00 | 45.00-44.38 | 3.12-2.88 |
| M20 | 21.33-21.00 | 50.00-49.38 | 3.12-2.88 |
| M22 | 23.33-23.00 | 55.00-54.26 | 3.12-2.88 |
| M24 | 25.33-25.00 | 60.00-59.26 | 4.15-3.85 |
| M27 | 28.33-28.00 | 65.00-64.26 | 4.15-3.85 |
| M30 | 31.39-31.00 | 70.00-69.26 | 4.15-3.85 |
