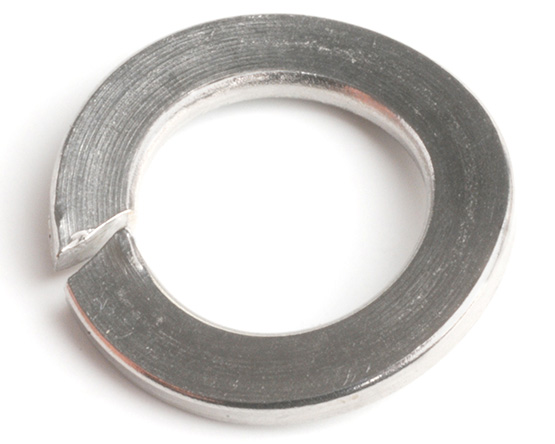

M12 Curved Spring Washer DIN 128A A4 Stainless Steel
Part No. A12812A4
£28.91 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £28.91 |
| 1000 + | £27.46 |
| 2000 + | £26.09 |
| 5000 + | £24.79 |
| 10000 + | £23.26 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 (max) | s | h | b |
|---|---|---|---|---|---|
| M2 | 2.4-2.1 | 4.4 | 0.5 | 0.90-0.70 | 0.9 |
| M2.3 | 2.7-2.4 | 4.9 | 0.6 | 1.10-0.90 | 0.9 |
| M2.5 | 2.9-2.6 | 5.1 | 0.6 | 1.10-0.90 | 1.0 |
| M2.6 | 3.0-2.7 | 5.2 | 0.6 | 1.10-0.90 | 1.0 |
| M3 | 3.4-3.1 | 6.2 | 0.7 | 1.30-1.10 | 1.3 |
| M3.5 | 3.9-3.6 | 6.7 | 0.7 | 1.30-1.10 | 1.3 |
| M4 | 4.4-4.1 | 7.6 | 0.8 | 1.40-1.20 | 1.5 |
| M5 | 5.4-5.1 | 9.2 | 1.0 | 1.70-1.50 | 1.8 |
| M6 | 6.5-6.1 | 11.8 | 1.3 | 2.20-2.00 | 2.5 |
| M8 | 8.5-8.1 | 14.8 | 1.6 | 2.75-2.45 | 3.0 |
| M10 | 10.7-10.2 | 18.1 | 1.8 | 3.15-2.85 | 3.5 |
| M12 | 12.7-12.2 | 21.1 | 2.1 | 3.65-3.35 | 4.0 |
| M14 | 14.7-14.2 | 24.1 | 2.4 | 4.30-3.90 | 4.5 |
| M16 | 17.0-16.2 | 27.4 | 2.8 | 5.10-4.50 | 5.0 |
| M18 | 19.0-18.2 | 29.4 | 2.8 | 5.10-4.50 | 5.0 |
| M20 | 21.2-20.2 | 33.6 | 3.2 | 5.90-5.10 | 6.0 |
| M22 | 23.5-22.5 | 35.9 | 3.2 | 5.90-5.10 | 6.0 |
| M24 | 25.5-24.5 | 40.0 | 4.0 | 7.50-6.50 | 7.0 |
| M27 | 28.5-27.5 | 43.0 | 4.0 | 7.50-6.50 | 7.0 |
| M30 | 31.7-30.5 | 48.2 | 6.0 | 10.50-9.50 | 8.0 |
| M36 | 37.7-36.5 | 58.2 | 6.0 | 10.30-11.30 | 10.0 |
