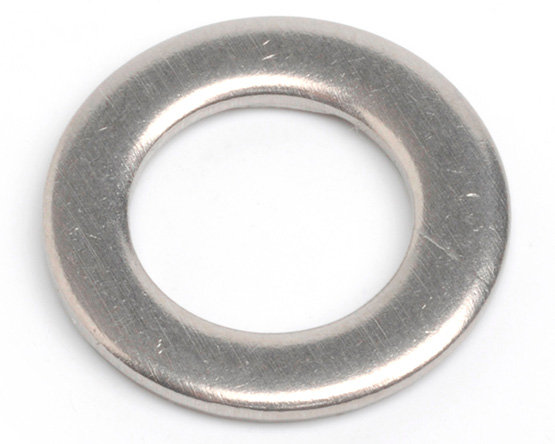

M4 DIN 433 Flat Washer A2 Stainless Steel
Part No. A43304
£1.67 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1000 + | £1.67 |
| 2000 + | £1.59 |
| 4000 + | £1.51 |
| 10000 + | £1.43 |
| 20000 + | £1.34 |
A minimum order quantity of 1000 applies to this productThis product must be ordered in multiples of 1000, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 | h |
|---|---|---|---|
| M1.4 | 1.64-1.50 | 3.00-2.75 | 0.35-0.25 |
| M1.6 | 1.84-1.70 | 3.50-3.20 | 0.35-0.25 |
| M2 | 2.34-2.20 | 4.50-4.20 | 0.35-0.25 |
| M2.5 | 2.84-2.70 | 5.00-4.70 | 0.55-0.45 |
| M3 | 3.38-3.20 | 6.00-5.70 | 0.55-0.45 |
| M3.5 | 3.88-3.70 | 7.00-6.64 | 0.55-0.45 |
| M4 | 4.48-4.30 | 8.00-7.64 | 0.55-0.45 |
| M5 | 5.48-5.30 | 9.00-8.64 | 1.10-0.90 |
| M6 | 6.62-6.40 | 11.00-10.57 | 1.80-1.40 |
| M8 | 8.62-8.40 | 15.00-14.57 | 1.80-1.40 |
| M10 | 10.77-10.55 | 18.00-17.57 | 1.80-1.40 |
| M12 | 13.27-13.00 | 20.00-19.48 | 2.20-1.80 |
| M14 | 15.27-15.00 | 24.00-23.48 | 2.70-2.30 |
| M16 | 17.27-17.00 | 28.00-27.48 | 2.70-2.30 |
| M18 | 19.33-19.00 | 30.00-29.48 | 2.70-2.30 |
| M20 | 21.33-21.00 | 34.00-33.38 | 3.30-2.70 |
