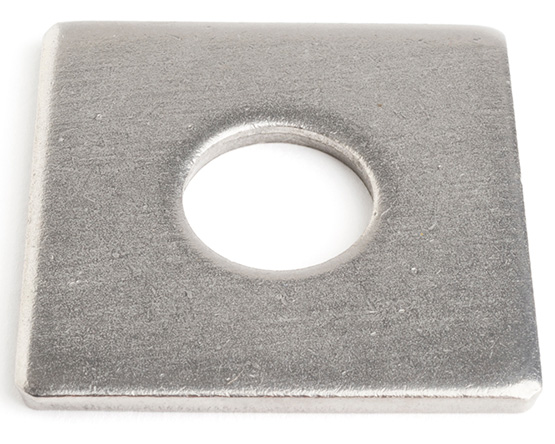

M24 Square Wood Construction Washer (26 X 80 X 8) DIN 436 A4 Stainless Steel
Part No. A43624A4
£1084.33 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £1084.33 |
| 100 + | £1030.11 |
| 200 + | £978.61 |
| 500 + | £929.81 |
| 1000 + | £872.34 |
Further Information
| Diameter (d) | d1 nom | d1 | a nom | a | h nom | h |
|---|---|---|---|---|---|---|
| M10 | 11 | 11.43-11.00 | 30 | 30.00-28.70 | 3 | 3.6-2.4 |
| M12 | 13.5 | 13.93-13.50 | 40 | 40.00-38.40 | 4 | 4.6-3.4 |
| M16 | 17.5 | 18.20-17.50 | 50 | 50.00-48.40 | 5 | 6.0-4.0 |
| M20 | 22 | 22.84-22.00 | 60 | 60.00-58.10 | 5 | 6.0-4.0 |
| M22 | 24 | 24.84-24.00 | 70 | 70.00-68.10 | 6 | 7.0-5.0 |
| M24 | 26 | 26.84-26.00 | 80 | 80.00-78.10 | 6 | 7.0-5.0 |
