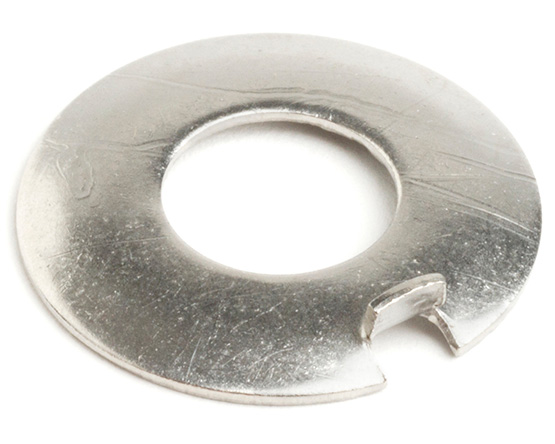

M16 (17
Part No. A43216A4
£52.14 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £52.14 |
| 100 + | £49.53 |
| 200 + | £47.06 |
| 500 + | £44.71 |
| 1000 + | £41.95 |
A minimum order quantity of 50 applies to this productThis product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 | d3 | f | g | h | s | d4 | e | t |
|---|---|---|---|---|---|---|---|---|---|---|
| M4 | 4.3 | 14 | 10 | 2.5 | 5.5 | 2 | 0.4 | 4 | 5.3 | 2.5 |
| M5 | 5.3 | 17 | 12 | 3.5 | 7 | 2.5 | 0.75 | 5 | 6.62 | 3.5 |
| M6 | 6.4 | 19 | 14 | 3.5 | 7.5 | 3 | 0.75 | 5 | 7.12 | 3.5 |
| M8 | 8.4 | 22 | 16 | 3.5 | 8.5 | 4 | 1 | 5 | 8 | 4 |
| M10 | 10.5 | 26 | 20 | 4.5 | 10 | 4 | 1 | 6 | 9.5 | 4 |
| M12 | 13 | 30 | 24 | 4.5 | 12 | 4.5 | 1 | 6 | 11.4 | 5 |
| M14 | 15 | 33 | 27 | 4.5 | 13 | 4.5 | 1.2 | 6 | 12.4 | 5 |
| M16 | 17 | 36 | 30 | 5.5 | 15 | 4.5 | 1.2 | 7 | 14.4 | 5 |
| M18 | 19 | 40 | 34 | 6.5 | 18 | 4.5 | 1.2 | 8 | 17.4 | 5 |
| M20 | 21 | 42 | 36 | 6.5 | 18 | 4.5 | 1.6 | 8 | 17.2 | 5 |
| M22 | 23 | 50 | 43 | 7.5 | 20 | 6.5 | 1.6 | 9 | 19.2 | 7 |
| M24 | 25 | 50 | 43 | 7.5 | 21 | 6.5 | 1.6 | 9 | 20.2 | 7 |
| M27 | 28 | 58 | 50 | 8.5 | 23 | 9.5 | 1.6 | 10 | 22.2 | 9 |
| M30 | 31 | 63 | 55 | 8.5 | 25 | 9.5 | 1.6 | 10 | 24.2 | 9 |
| M33 | 34 | 68 | 60 | 9.5 | 28 | 9.5 | 1.6 | 11 | 27.2 | 9 |
| M36 | 37 | 75 | 67 | 11 | 31 | 9.5 | 2 | 13 | 30 | 9 |
| M39 | 40 | 82 | 74 | 11 | 33 | 11 | 2 | 13 | 32 | 11 |
