Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

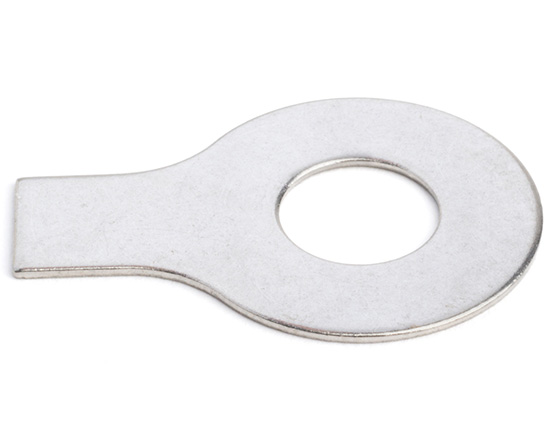

M36 (37
Part No. A93036A4
£260.78 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £260.78 |
| 100 + | £247.74 |
| 200 + | £235.35 |
| 500 + | £223.62 |
| 1000 + | £209.80 |
Further Information
| Diameter (d) | d1 | b | d2 | L | r | s |
|---|---|---|---|---|---|---|
| M4 | 4.3 | 5 | 14 | 14 | 2.5 | 0.38 |
| M5 | 5.3 | 6 | 17 | 16 | 2.5 | 0.50 |
| M6 | 6.4 | 7 | 19 | 18 | 4 | 0.50 |
| M8 | 8.4 | 8 | 22 | 20 | 4 | 0.75 |
| M10 | 10.5 | 10 | 26 | 22 | 6 | 0.75 |
| M12 | 13 | 12 | 30 | 28 | 10 | 1.00 |
| M14 | 15 | 12 | 33 | 28 | 10 | 1.00 |
| M16 | 17 | 15 | 36 | 32 | 10 | 1.00 |
| M18 | 19 | 18 | 40 | 36 | 10 | 1.00 |
| M20 | 21 | 18 | 42 | 36 | 10 | 1.00 |
| M22 | 23 | 20 | 50 | 42 | 10 | 1.00 |
| M24 | 25 | 20 | 50 | 42 | 10 | 1.00 |
| M27 | 28 | 23 | 58 | 48 | 16 | 1.60 |
| M30 | 31 | 26 | 63 | 52 | 16 | 1.60 |
| M33 | 34 | 28 | 68 | 56 | 16 | 1.60 |
| M36 | 37 | 30 | 75 | 60 | 16 | 1.60 |
| M39 | 40 | 32 | 82 | 64 | 16 | 1.60 |
