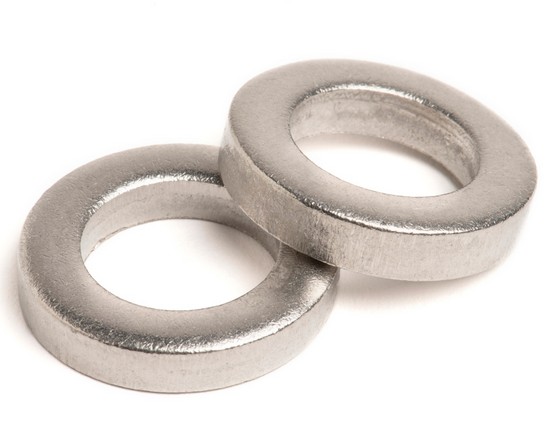

M24 Washer For Steel Structure DIN 7989-1 Form C A2 Stainless Steel
Part No. A798924
£234.85 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £234.85 |
| 50 + | £223.11 |
| 100 + | £211.95 |
| 250 + | £201.38 |
| 500 + | £188.94 |
A minimum order quantity of 25 applies to this productThis product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d2 | d1 | h |
|---|---|---|---|
| M10 | 11.70-11.00 | 20.00-18.70 | 9.20-6.80 (nom=8.00) |
| M12 | 14.20-13.50 | 24.00-22.70 | 9.20-6.80 (nom=8.00) |
| M16 | 18.20-17.50 | 30.00-28.70 | 9.20-6.80 (nom=8.00) |
| M20 | 22.84-22.00 | 37.00-35.40 | 9.20-6.80 (nom=8.00) |
| M22 | 24.84-24.00 | 39.00-37.40 | 9.20-6.80 (nom=8.00) |
| M24 | 26.84-26.00 | 44.00-42.40 | 9.20-6.80 (nom=8.00) |
| M27 | 30.84-30.00 | 50.00-48.40 | 9.20-6.80 (nom=8.00) |
| M30 | 34.00-33.00 | 56.00-54.10 | 9.20-6.80 (nom=8.00) |
