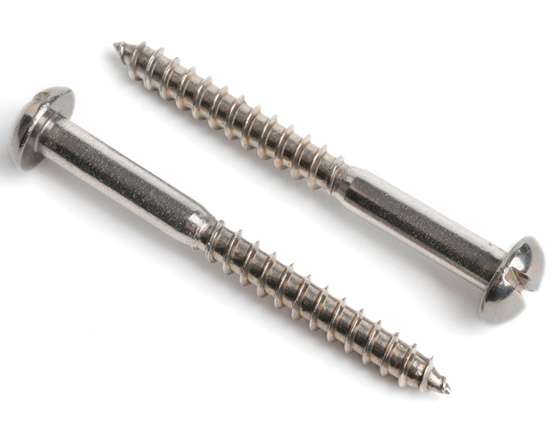

2.5 X 25 Slot Round Woodscrew DIN 96 A2 Stainless Steel
Part No. A9602525
£10.70 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £10.70 |
| 1000 + | £10.16 |
| 2000 + | £9.66 |
| 5000 + | £9.18 |
| 10000 + | £8.61 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Size | dk | k | ds | n (nom) | t (min) | b |
|---|---|---|---|---|---|---|
| 2.5 (#3) | 5.38-4.62 | 1.90-1.50 | 2.50-2.10 | 0.60 | 0.85 | 0.6 x L |
| 3.0 (#4) | 6.38-5.62 | 2.30-1.90 | 3.00-2.60 | 0.80 | 1.05 | 0.6 x L |
| 3.5 (#6) | 7.45-6.55 | 2.60-2.10 | 3.50-3.02 | 0.80 | 1.20 | 0.6 x L |
| 4.0 (#8) | 8.45-7.55 | 3.00-2.60 | 4.00-3.52 | 1.00 | 1.40 | 0.6 x L |
| 4.5 (#9) | 9.45-8.55 | 3.34-2.86 | 4.50-4.02 | 1.00 | 1.55 | 0.6 x L |
| 5.0 (#10) | 10.45-9.55 | 3.74-3.26 | 5.00-4.52 | 1.20 | 1.75 | 0.6 x L |
| 5.5 (#12) | 11.55-10.45 | 4.04-3.56 | 5.50-5.02 | 1.20 | 1.90 | 0.6 x L |
| 6.0 (#14) | 12.55-11.45 | 4.44-3.96 | 6.00-5.52 | 1.60 | 2.10 | 0.6 x L |
