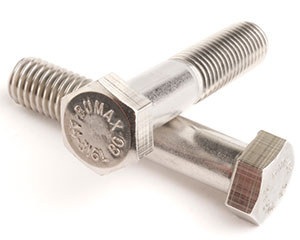

M8 X 70 HEXAGON HEAD BOLT ISO 4014 BUMAX 88
£192.00 (exc VAT) per 100
Part No. BUMAX40140807088
£192.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £192.00 |
| 100 + | £182.40 |
| 200 + | £173.28 |
| 500 + | £164.64 |
| 1000 + | £154.46 |
This product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | k | b (max) | b (max) L =125mm+ |
|---|---|---|---|---|---|
| M6 | 1.00 | 10.00-9.78 | 4.15-3.85 | 18 | 24 |
| M8 | 1.25 | 13.00-12.73 | 5.45-5.15 | 22 | 28 |
| M10 | 1.50 | 16.00-15.73 | 6.58-6.22 | 26 | 32 |
| M12 | 1.75 | 18.00-17.73 | 7.68-7.32 | 30 | 36 |
| M14 | 2.00 | 21.00-20.67 | 8.98-8.62 | 34 | 40 |
| M16 | 2.00 | 24.00-23.67 | 10.18-9.82 | 38 | 44 |
| M18 | 2.50 | 27.00-26.67 | 11.715-11.285 | 42 | 48 |
| M20 | 2.50 | 30.00-29.67 | 12.715-12.285 | 46 | 52 |
| M24 | 3.00 | 36.00-35.38 | 15.215-14.785 | 54 | 60 |
| M27 | 3.00 | 41.00-40.00 | 17.35-16.65 | 60 | 66 |
| M30 | 3.50 | 46.00-45.00 | 19.12-18.28 | 66 | 72 |
| M36 | 4.00 | 55.00-53.80 | 22.92-22.08 | 78 | 84 |
