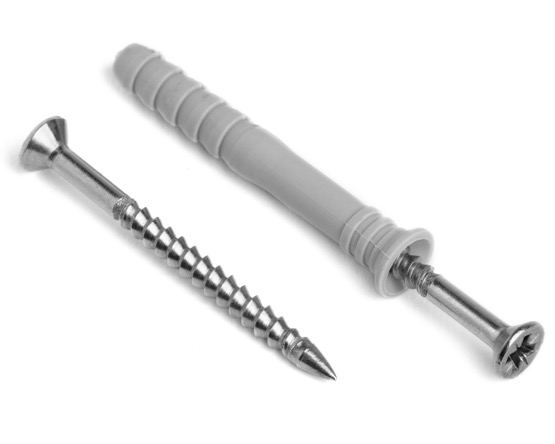

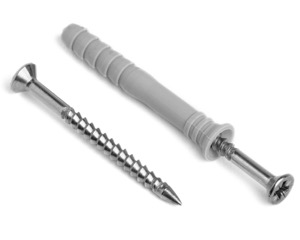

6.0 X 40 Pozi Countersunk Hammerfix Screw + Nylon Plug A2 Stainless Steel
Further Information
| Gauge / Metric | Lt+K | Drive | dk | K | Dp | Lp | Lo | To | |
|---|---|---|---|---|---|---|---|---|---|
| #14 (6.0) | 40 | #2 | 7.7 | 4 | 10 | 35 | 5 | 25 | 1.2 |
| #14 (6.0) | 60 | #2 | 7.7 | 4 | 10 | 56 | 4 | 25 | 1.2 |
| #16 (8.0) | 60 | #2 | 10 | 6 | 11 | 56 | 4 | 32.75 | 1.6 |
| #16 (8.0) | 80 | #2 | 10 | 6 | 11.2 | 76 | 4 | 32.75 | 1.6 |
| #16 (8.0) | 100 | #2 | 10 | 6 | 12 | 96 | 4 | 32.75 | 1.64 |
