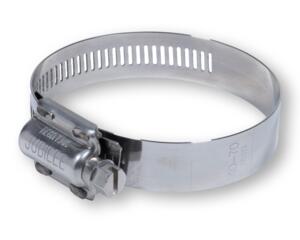

55 (35-55mm) JUBILEE CLIP HIGH TORQUE (HT055) A2 STAINLESS STEEL

Name: 55 (35-55mm) JUBILEE CLIP HIGH TORQUE (HT055) A2 STAINLESS STEEL
SKU: AJUBHT55
Price: 499.26 GBP
Availability: OutOfStock

£499.26 (exc VAT) per 100

Part No. AJUBHT55

£499.26 (exc VAT) per 100

SHOP FOR MORE JUBILEE CLIPS HIGH TORQUE

Min Diameter (mm)	Max Diameter (mm)	Band Width (mm)	Band Thickness (mm)	Recommended Torque (Nm)	Maximum Torque (Nm)	Maximum Pressure (PSi)
20	35	15.7	0.7	11.9	17.0	304.5
25	40	15.7	0.7	11.9	17.0	304.5
25	45	15.7	0.7	11.9	17.0	304.5
30	50	15.7	0.7	11.9	17.0	304.5
35	55	15.7	0.7	11.9	17.0	153.0
40	60	15.7	0.7	11.9	17.0	153.0
45	65	15.7	0.7	11.9	17.0	153.0
40	70	15.7	0.7	11.9	17.0	153.0
60	80	15.7	0.7	11.9	17.0	153.0
70	95	15.7	0.7	11.9	17.0	153.0
80	100	15.7	0.7	11.9	17.0	66.0
90	120	15.7	0.7	11.9	17.0	66.0
110	140	15.7	0.7	11.9	17.0	66.0
130	160	15.7	0.7	11.9	17.0	66.0
150	180	15.7	0.7	11.9	17.0	30.0
170	200	15.7	0.7	11.9	17.0	30.0
190	220	15.7	0.7	11.9	17.0	30.0
210	240	15.7	0.7	11.9	17.0	30.0
230	260	15.7	0.7	11.9	17.0	30.0
250	280	15.7	0.7	11.9	17.0	30.0
270	300	15.7	0.7	11.9	17.0	30.0
290	320	15.7	0.7	11.9	17.0	30.0
310	340	15.7	0.7	11.9	17.0	n/a
330	360	15.7	0.7	11.9	17.0	n/a
350	380	15.7	0.7	11.9	17.0	n/a
370	400	15.7	0.7	11.9	17.0	n/a
390	420	15.7	0.7	11.9	17.0	n/a
410	440	15.7	0.7	11.9	17.0	n/a
430	460	15.7	0.7	11.9	17.0	n/a
450	480	15.7	0.7	11.9	17.0	n/a
470	500	15.7	0.7	11.9	17.0	n/a
490	520	15.7	0.7	11.9	17.0	n/a
