Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

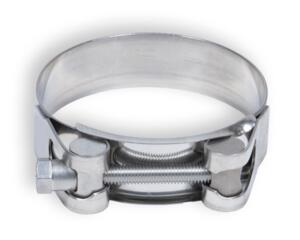

43 (40-43mm) JUBILEE SUPER CLAMP (JSC043SS) A2 STAINLESS STEEL
£882.00 (exc VAT) per 100
Part No. AJUBSC43
£882.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 5 + | £882.00 |
| 10 + | £837.90 |
| 20 + | £796.01 |
| 50 + | £756.32 |
| 100 + | £709.57 |
Further Information
| Min Diameter (mm) | Max Diameter (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Screw Head (mm) |
|---|---|---|---|---|---|---|
| 17 | 19 | 18.0 | 0.6 | 4.5 | 6.0 | 8 |
| 20 | 22 | 18.0 | 0.6 | 4.5 | 6.0 | 8 |
| 23 | 25 | 18.0 | 0.6 | 4.5 | 6.0 | 8 |
| 26 | 28 | 18.0 | 0.6 | 4.5 | 6.0 | 8 |
| 29 | 31 | 18.0 | 0.6 | 4.5 | 8.0 | 10 |
| 32 | 35 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 36 | 39 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 40 | 43 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 44 | 47 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 48 | 51 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 52 | 55 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 56 | 59 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 60 | 63 | 20.0 | 1.0 | 6.0 | 8.0 | 10 |
| 64 | 67 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 68 | 73 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 74 | 79 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 80 | 85 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 86 | 91 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 92 | 97 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 98 | 103 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 104 | 112 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 113 | 121 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 122 | 130 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 131 | 139 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 140 | 148 | 25.0 | 1.2 | 18.5 | 25.0 | 13 |
| 149 | 161 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 192 | 174 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 175 | 187 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 188 | 200 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 201 | 213 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 214 | 226 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 227 | 239 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 240 | 255 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
| 253 | 265 | 25.0 | 1.5 | 18.5 | 25.0 | 13 |
