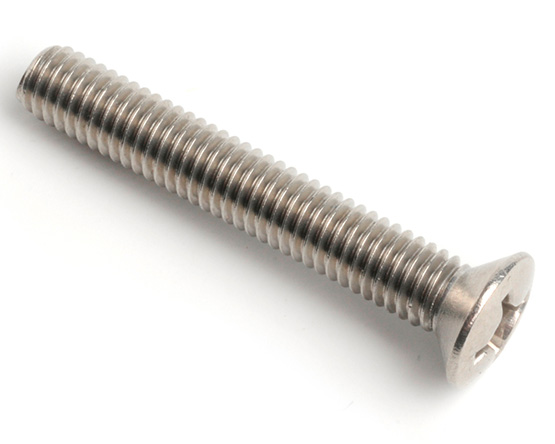

M2 X 3 PHILLIPS RAISED COUNTERSUNK MACHINE SCREW DIN 966H A2 STAINLESS STEEL
£1.32 (exc VAT) per 100
Part No. A9660203H
£1.32 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1000 + | £1.32 |
| 2000 + | £1.25 |
| 4000 + | £1.19 |
| 10000 + | £1.13 |
| 20000 + | £1.06 |
Further Information
| Diameter (d) | Pitch | dk | k (max) | f (max) | Drive |
|---|---|---|---|---|---|
| M2 | 0.40 | 3.80-3.50 | 1.20 | 0.50 | #1 |
| M2.5 | 0.45 | 4.70-4.40 | 1.50 | 0.60 | #1 |
| M3 | 0.50 | 5.60-5.20 | 1.65 | 0.75 | #1 |
| M4 | 0.70 | 8.40-7.14 | 2.20 | 1.00 | #2 |
| M5 | 0.80 | 9.30-8.84 | 2.50 | 1.25 | #2 |
| M6 | 1.00 | 11.30-10.57 | 3.00 | 1.50 | #3 |
| M8 | 1.25 | 14.50-14.07 | 4.00 | 2.00 | #4 |
| M10 | 1.50 | 18.30-17.78 | 6.00 | 2.30 | #4 |
